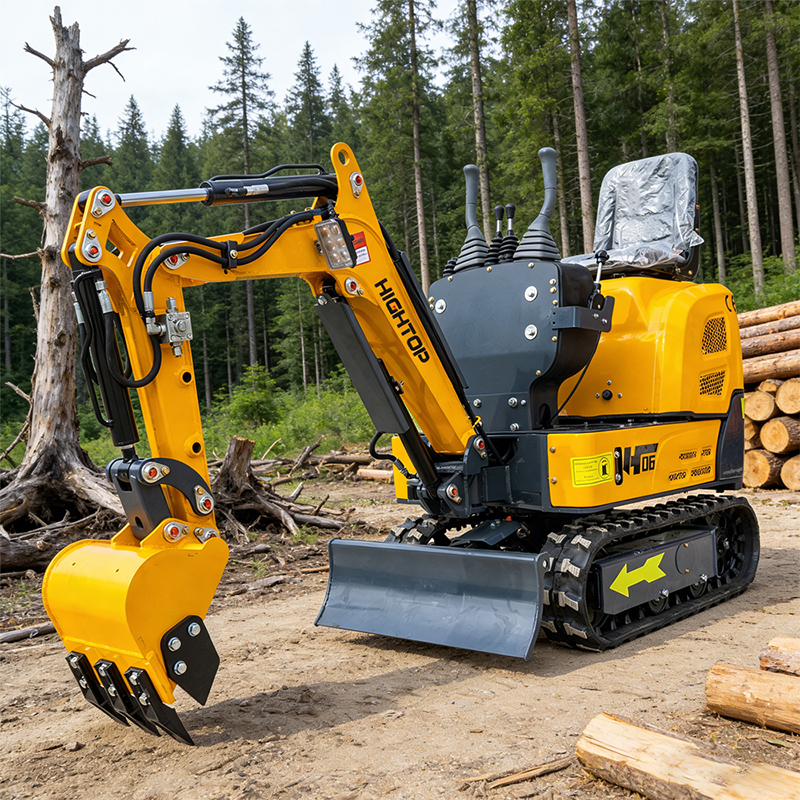

his lightweight 600kg digger fits perfectly into a regular pickup truck bed,and it does not require a large trailer.Significantly reduce transportation costs and transition difficulties, suitable for frequent operations on multiple construction sites and projects.
The .6-ton HT106 is a 30 degree climbing ability excavator that won’t slip.It easy to handle complex terrains such as steep slopes, ridges, orchards, and muddy construction sites. It moves steadily, does not slip, does not sink into the car, and has no obstacles in passing. The compact body combines strong passability and is versatile for indoor and outdoor use, mountainous slopes, and narrow alleys.
| Parameter | Value |
|---|---|
| Machine Dimensions | |
| Transport Length A | 1910mm |
| Overall Width B | 700mm |
| Overall Height C | 2186mm |
| Upper Width D | 700mm |
| Track Gauge E | 550mm |
| Standard Track Shoe Width F | 150mm |
| Dozer Blade Ground Clearance G | 115mm |
| Dozer Blade Digging Depth H | 93mm |
| Rear Tail Swing Radius I | 650mm |
| Track Length on Ground J | 782mm |
| Track Overall Length K | 1126mm |
| Working Range | |
| Max Digging Height a | 2010mm |
| Max Height at Min Swing Radius b | 1600mm |
| Max Digging Depth c | 1118mm |
| Max Digging Reach at Ground Level d | 2030mm |
| Min Swing Radius e | 1260mm |
| Max Dumping Height f | 1280mm |
| Performance | |
| Operating Weight | 600kg |
| Bucket Capacity | 0.01m³ |
| Working Equipment Type | Backhoe |
| Gradeability | 30° |
| Main Components | |
| Engine | RATO / Briggs & Stratton |
| Main Control Valve | Beifang |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
