Engine brand:Briggs&Stratton
Power:13.5HP/3600rpm （10KW）
Load capacity:1200kg

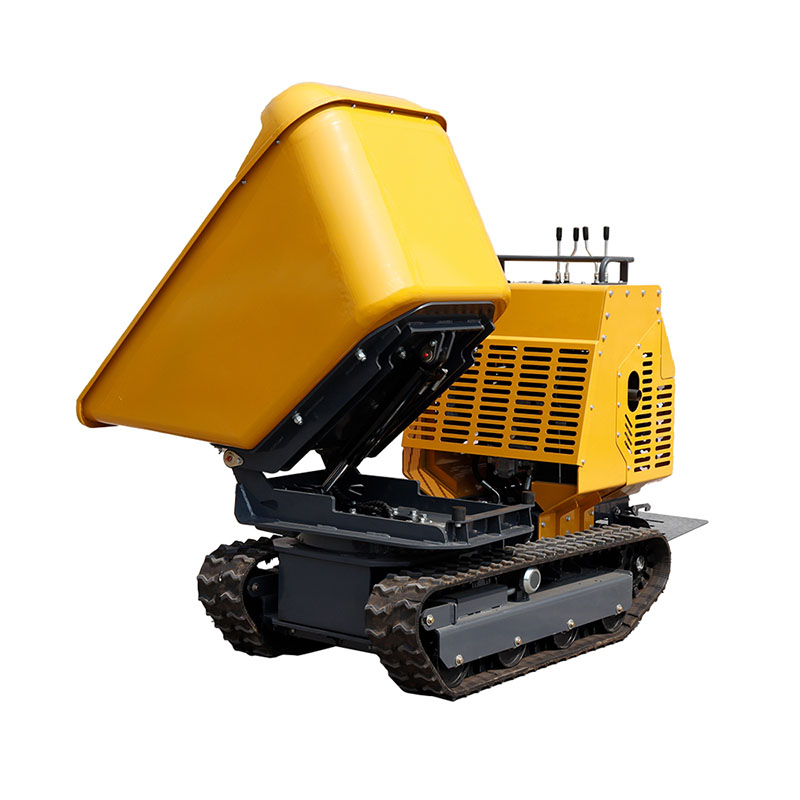

HIGHTOP mini crawler dumpers are perfect for construction, renovations, and landscaping on challenging terrains. With load capacities from 500 kg to 2,900 kg, they deliver exceptional strength and versatility. Their compact design and advanced technology ensure high performance and safety, even in conditions where wheeled machines may struggle.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery。 We have more than 10 warehouses around the world and offer exceptional support, including a 1-year warranty and lifetime technical assistance.
Hightop all-terrain tracked transporter is powered by a premium Briggs&Stratton engine with up to 13.5HP/3600rpm of power for powerful yet fuel-efficient operation and superior heat distribution.
The hopper can be turned up and down 90°
The hopper can be rotated 180° left and right
Separate tipping and rotation controlscan be operated simultaneously
Made of thick steel plate,Strong bearing capacity.The function of theoperation panel is clear，Centralized control,Easy operation
Engineering rubber track,Strong grip,Good climbing performance,wear-resistant.
Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading
Modle:HT1200
Engine Model:Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 420CC
Rated Power 13.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 6.5L
Net weight: 850kg
Maximum load capacity 1200kg
Body size :
(Footboard not included) 2060*900*1400mm
Pedal machine size included 2470*900*1400mm
Container size： 1400*800*600mm
Chassis width： 900mm
Maximum rotation Angle 260°
Rotation mode: Hydraulic rotation
Tipping interval 320mm
track width： 180mm
Track grounding length： 1000mm
Chassis ground clearance: 140mm
Cargo box Capacity 594dm³
Tipping Systme Hydraulic Tipper
Tilting Angle 90°
Clearance after tipping container 300m
Walking Speed 5km/h
Climbing abillty 25°
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
