Engine Brand:Kubota Z482,Maximum Digging Depth :1850mm

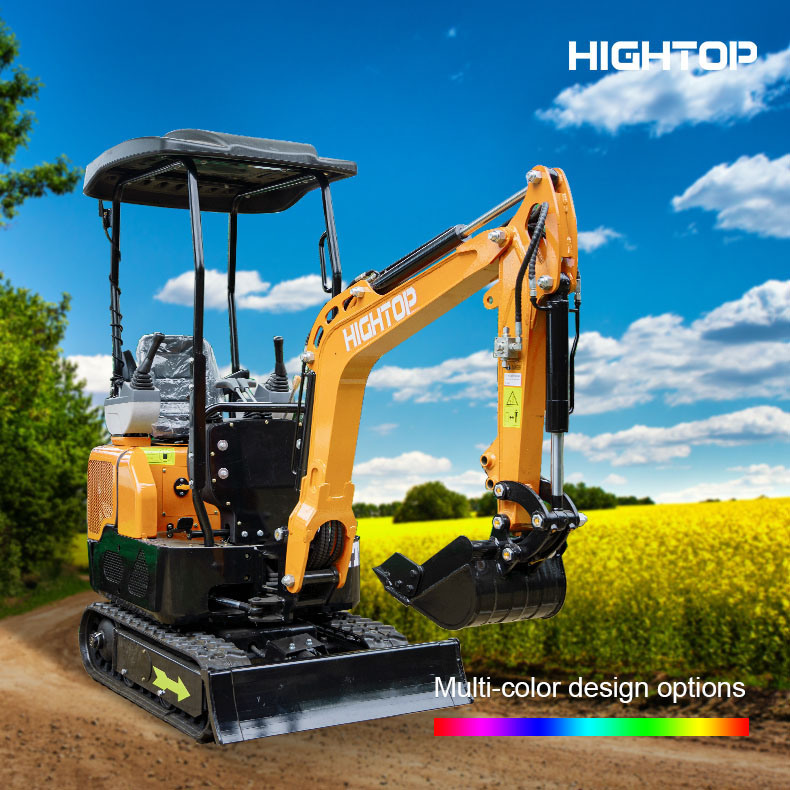

Precision-controlled 1.2 Ton mini excavator with pilot hydraulics and narrow width — perfect for confined spaces, urban construction, and indoor projects.
The Kubota Z482 engine equipped on the 1.2-ton mini excavator is a perfect combination of power and reliability. As a highly acclaimed power core in the industry, this engine can not only output strong and stable power, easily meet various operational needs such as earthwork excavation and material handling, but also maintain stable operation in complex working conditions such as high temperature, low temperature, and high humidity, greatly reducing the probability of downtime caused by environmental factors.
The HT12G excavator adopts full hydraulic control combined with a pilot control system, achieving a dual breakthrough in operation accuracy and response speed, making the movements of the bucket, boom and other working devices more smooth and coherent, avoiding the feeling of jolting during the operation process, and improving the quality of the operation. Compared to traditional mechanical control, the operating force is smaller, and precise control can be achieved with only a slight operation of the handle, especially suitable for long-term operations.
The total width of this mini excavator is only 930 millimeters, making it an ideal choice for narrow space operations with an 820 millimeter tail turning radius. In scenes of limited space such as urban village renovation, indoor demolition, and tunnel construction, the narrow chassis width allows it to easily shuttle through narrow passages, avoiding the problem of being unable to enter the work area due to equipment being too large. And the ultra small tail turning radius allows the device to achieve flexible turning in a limited space
The support plate of the bulldozer shovel is made of high-quality materials, providing a solid guarantee for the reliability and service life of the bulldozer from the material level. In operations such as leveling the ground, clearing debris, and transporting materials with bulldozers, they can withstand enormous impact and friction forces, effectively avoiding deformation, cracking, and other problems that may occur with ordinary materials due to insufficient strength. Even when dealing with hard sites containing gravel and bricks, the bulldozer can maintain stable performance, significantly reducing the frequency of maintenance and replacement.
The rubber track equipped on the 1.2-ton mini excavator is a core component carefully designed for complex working environments. Compared with traditional steel tracks, it can significantly reduce noise pollution during operation. At the same time, the buffering characteristics of rubber material greatly reduce the vibration of the machine during operation, which not only improves the driving comfort of operators, but also has moderate friction and soft texture when in contact with the ground. When working on asphalt roads, cement roads, lawns and other road surfaces that need protection, it can completely avoid the crushing and damage caused by steel tracks to the road surface
The 1.2-ton mini excavator adopts an innovative upgrade to the traditional excavation mechanism with a pull-up boom oil cylinder design. By optimizing the connection position and force direction between the oil cylinder and the boom, the boom can obtain stronger upward pulling power during the extension and retraction process, thereby driving the shovel bucket to achieve deeper excavation operations. In actual construction, whether it is excavating foundations, ditches, or clearing soil and stone in deep pits, this design can increase the effective excavation depth of the machine by 15% -20% compared to traditional downward pressure oil cylinders, making it easy to meet deeper operational needs.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | HT12G | Maximum excavation height | 2455mm |
| Engine | Kubota Z482 | Maximum Dumping Height | 1620mm |
| Transportation length | 2380mm | Maximum Digging Depth | 1850mm |
| Total width | 930mm | Maximum excavation distance | 2920mm |
| Upper width | 940mm | minimum radius | 1510mm |
| Total height (cab roof) | 2270mm | Maximum height at minimum turning radius | 1930mm |
| Standard track shoe width | 180mm | Work quality | 900kg |
| Track gauge | 750mm | Bucket capacity | 0.02m³ |
| The height of the bulldozer blade above the ground | 110mm | Form of working device | Backhoe |
| Bulldozer shovel pushes excavation depth | 195mm | Gradeability | 30 degrees |
| Tail turning radius | 820mm | Track length | 1235mm |
| Track grounding length | 890mm |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
