Walking motor：2500w+2500w Brushless motor(Upgradeable to 3000w)
Walking controller: 30 tube brushless controller * 2
Load capacity：400kg

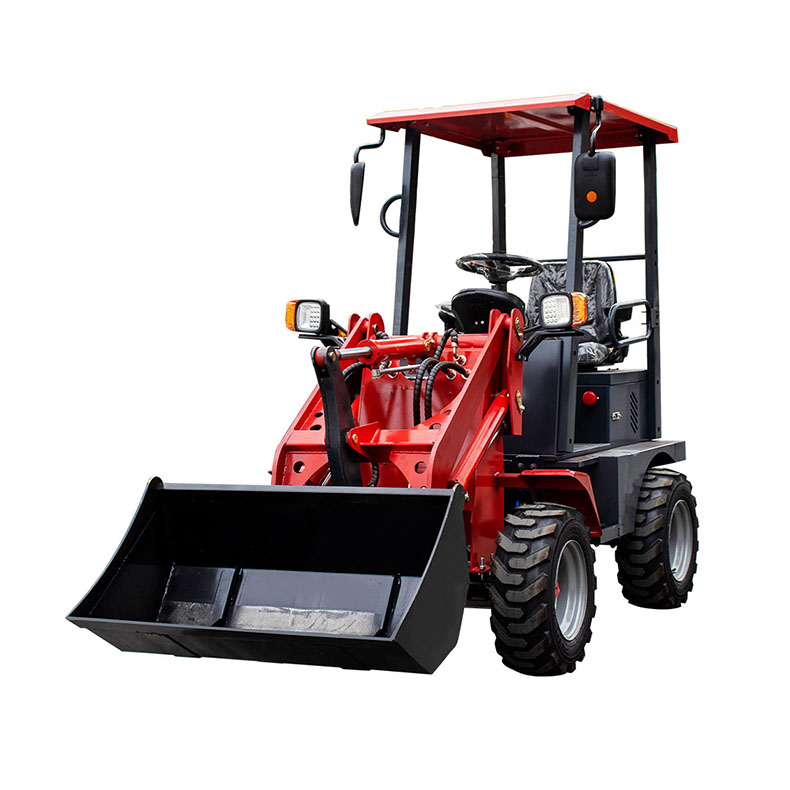

HIGHTOP’s wheel loaders, featuring advanced engines and hydraulic systems, enhance efficiency and fuel economy. With working weights from 0.5 to 5 tonnes, they offer user-friendly cabs with air conditioning and shock-absorbing seats for optimal comfort. Versatile and adaptable, these loaders perform various tasks like digging, crushing, and sweeping with interchangeable attachments. Ideal for construction, earthwork, material handling, and more, HIGHTOP wheel loaders combine efficiency, flexibility, and versatility to become essential。
We offer cost-effective solutions with lower production costs from our China-based factory. With more than 10 warehouses around the world, we offer exceptional support including a 1-year warranty and lifetime technical support.
Small electric loaders use electricity as a power source and do not require fuel, so they do not emit harmful gases during operation, which is friendly to the environment.
Each operation can load more materials, and more loading workload can be completed in a certain time
Standard forklift operation console, high safety factor
Larger tires have a thicker body and a stronger construction, which allows the tire to withstand greater weight. Better support for fuselage weight as well as cargo weight.
Provide sufficient light in a dim working environment to ensure that the driver can clearly see the front of the loading vehicle, around the loading and unloading area, to ensure the accuracy and safety of the operation.
Small electric loaders are widely used in construction projects such as roads, railways, buildings, hydropower, ports, mines, etc., and are also agricultural machinery used in small spaces such as rice plants, farms, and pastures.
Walking motor ：2500w+2500w Brushless motor(Upgradeable to 3000w)
transaxle ：1:35Heavy duty power bridge
Walking controller：30 tube brushless controller x 2
The upper arm thickness:16mm
Weight:750kg
Battery size: Chaowei brand Lead acid 60V 100AH
charging voltage:220V
Charging time :5-6h
Lifting Height :2700mm
Dimension:2970×1170×2000mm(Including bucket length)
paiting and color:Spray painting process; Grey+Red color scheme (color can be customized)
Lifting motor:1800wBrushless motor
Steering method: Hydraulic steering
Hydraulic controller:24 tube brushless controller
Tire Size:23×8.5-12Vacuum off-road tire
rated loading capacity:400kg
Battery capacity:5 pcs of 12V100ah (customizable)
Output voltage:60V
Endurance:4-5h
Dumping height:2100mm
bucket size:600×1000×300mm
Optional accessories:Fork,hydraulic grapple,snow blade
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
