Engine Brand：Koop/Briggs&Stratton，Maximum digging distance:2920mm
This Hightop 1.5ton Mini Crawler Excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,auger,tilt bucket,ripper and rake.Combines hydraulic pilot control with a compact design, delivering smoother operation and greater precision in confined working environments.
HIGHTOP Mini Crawler Excavator excel in efficiency on small construction sites, with easy transportation and maneuverability in tight spaces. Available in 0.8 to 4 tons, they feature a variable-width undercarriage and foldable blades, with some models offering temperature-controlled cabs.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery, our products include durable attachments compatible with most compact excavators and skid steer loaders. With over 10 global warehouses, we ensure fast shipping within one week and provide exceptional support, including a 1-year warranty and lifetime technical assistance.
Upgrading from rigid mechanical levers, the HT15 Pro features an advanced hydraulic pilot system. It ensures highly responsive, smooth, and coordinated multi-function movements while significantly reducing operator fatigue.
The boom can deflect up to 60 degrees left and right, allowing the operator to dig alongside walls and foundations without shifting the tracks. This delivers exceptional maneuverability in tight residential spaces.
Featuring a true tailless zero-turn body and heavy-duty rubber tracks, this machine prevents accidental rear impacts while protecting surfaces. It can also be equipped with expandable tracks for maximum stability and narrow pass-through capability.
This 1.5-ton mini excavator is optimized for versatility, easily integrating with a hydraulic quick hitch, tilt bucket, auger, and ripper. It is the ultimate multi-purpose solution for diverse landscaping and trenching projects.
The intuitive digital cluster provides real-time monitoring of essential operational data. Furthermore, dedicated oil drain lines for the travel and swing motors reduce internal backpressure, greatly extending hydraulic component life.

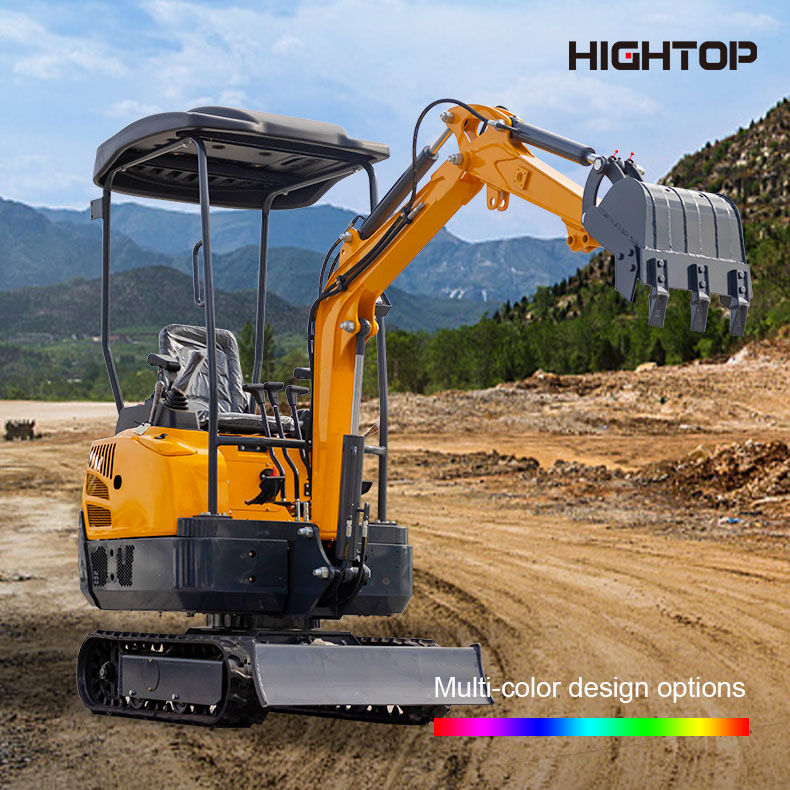

This lightweight HT15pro mini-excavator from Hightop is designed to function in limited locations such as backyards, gardens, alleyways, and narrow driveways because of its compact design, 1500kg operating weight, and 1650mm maximum digging depth,easy to operate.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Engine | Koop/Briggs & Stratton | Rated power | 10.2KW |
| Transportation length | 2300mm | Total width | 930mm |
| Upper width | 990mm | Overall height (cab roof) | 2270mm |
| Standard track plate width | 180mm | Track gauge | 750mm |
| Bulldozer ground clearance | 110mm | Bulldozer digging depth | 200mm |
| Tail turning radius | 800mm | Track ground length | 890mm |
| Track length | 1235mm | Maximum digging height | 2690mm |
| Maximum unloading height | 1825mm | Maximum digging depth | 1710mm |
| Maximum digging distance | 2920mm | Minimum turning radius | 1500mm |
| Maximum height at minimum turning radius | 2110mm | Operating Weight | 1500kg |
| Bucket capacity | 0.02m³ | Working device form | backhoe |
| Climbing capacity | 30° |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
