HIGHTOP’s wheel loaders, featuring advanced engines and hydraulic systems, enhance efficiency and fuel economy. With working weights from 0.5 to 5 tonnes, they offer user-friendly cabs with air conditioning and shock-absorbing seats for optimal comfort. Versatile and adaptable, these loaders perform various tasks like digging, crushing, and sweeping with interchangeable attachments. Ideal for construction, earthwork, material handling, and more, HIGHTOP wheel loaders combine efficiency, flexibility, and versatility to become essential。
We offer cost-effective solutions with lower production costs from our China-based factory. With more than 10 warehouses around the world, we offer exceptional support including a 1-year warranty and lifetime technical support.

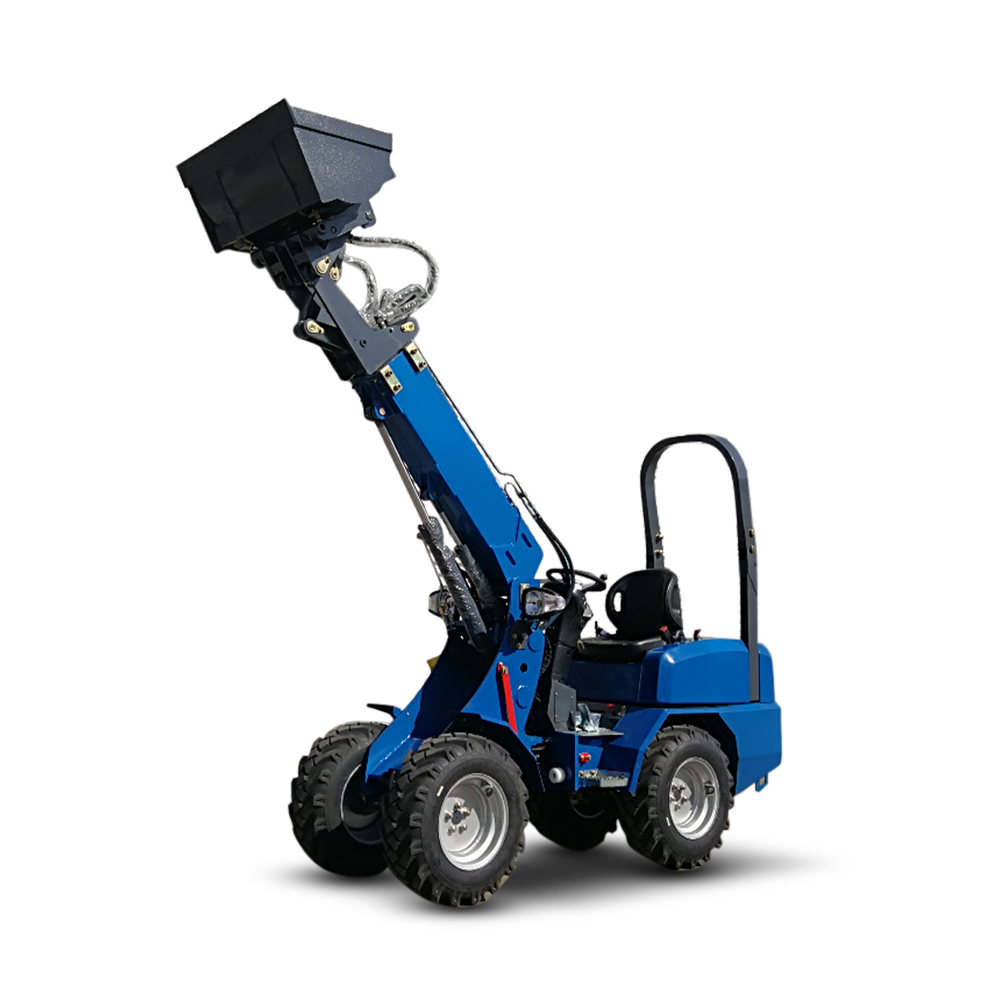

This mini wheel loader is powered by a premium Kubota engine with up to 28HP of power for powerful yet fuel-efficient operation and superior heat distribution. The model L with a longerboom allows for even higherload-over-height，Up to 2952mm.
28hp with Stage V/epa4 emission standard offers plentyofpower without exhaust after treatment.
The HT180 loader is smaller and more powerful, not only for roads, railways, ports, mines, farms, ranches and other environments, but also for farming, gardening, aquaculture, construction or other applications
High distance places.
Grass fork, Snow sweeper, Auger, Snow blade, Snow bucket, Pallet fork, Screening bucket, 4 in 1 bucket and other attachments can be installed on the compact wheel loader to realize different functions.
Installation of enclosed cockpit can reduce the interference of dust and debris, reduce the impact of noise, wind, rain and sun protection, protect the driver from bad weather.
When driving a small loader, the operator can easily control the loader for loading and unloading bulk materials and light shoveling and digging and other operations, which reduces labor intensity and improves work efficiency.
Model H180
Rated loading 800kg
Operation weight 2000kg
Max. Shovel width 1180mm
Bucket capacity 0.3cbm
Max. grade ability 30°
Min. ground clearance 200mm
Wheelbase 1540mm
Steering angle 49°
Max. dump height 2167mm
Load over height 2634mm
Hinge pin height 2900mm
Dinging depth 94mm
Dump distance 920mm
Overall dimension (L*W*H) 4300x1160x2150mm
Min. turning radius over shovel 2691mm
Min. turning radius over tyres 2257mm
Track base 872mm
Dumping angle 45°
Function of leveling automatic Yes
Engine KUBATA D1105-EF02
Rated power 18.2KW
Transmission system
Type Hydrostatic
System pump type Variable displacement piston
Drive type Independent wheel motors
Classic angle oscillation 7.5 each way
Max. speed 20km/h
Loader hydraulic
Pump type Gear
Pump maximum flow 42L/min
Pump maximum pressure 200bar
Electric output
System Voltage 12V
Alternator output 65Ah
Battery capacity 60Ah
Tyre model 10.0/75-15.3
Filling capacity
Hydraulic and transmission system 40L
Fuel tank 45L
Engine oil sump 7.1L
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
