Engine Brand:Kubota/Laidong
Working quality:1470kg
Bucket capacity:0.025m³
Designed for tight working spaces, the HT20Pro Mini Excavator combines side swing capability, dual-speed travel and a concealed motor for efficient performance.
Standing out from entry-level micro diggers, the HT20 Pro features a high-end concealed plunger motor. Its compact and fully protected structure delivers ultra-stable performance and high torque, making it a reliable two speed mini digger with plunger motor for heavy-duty workloads.

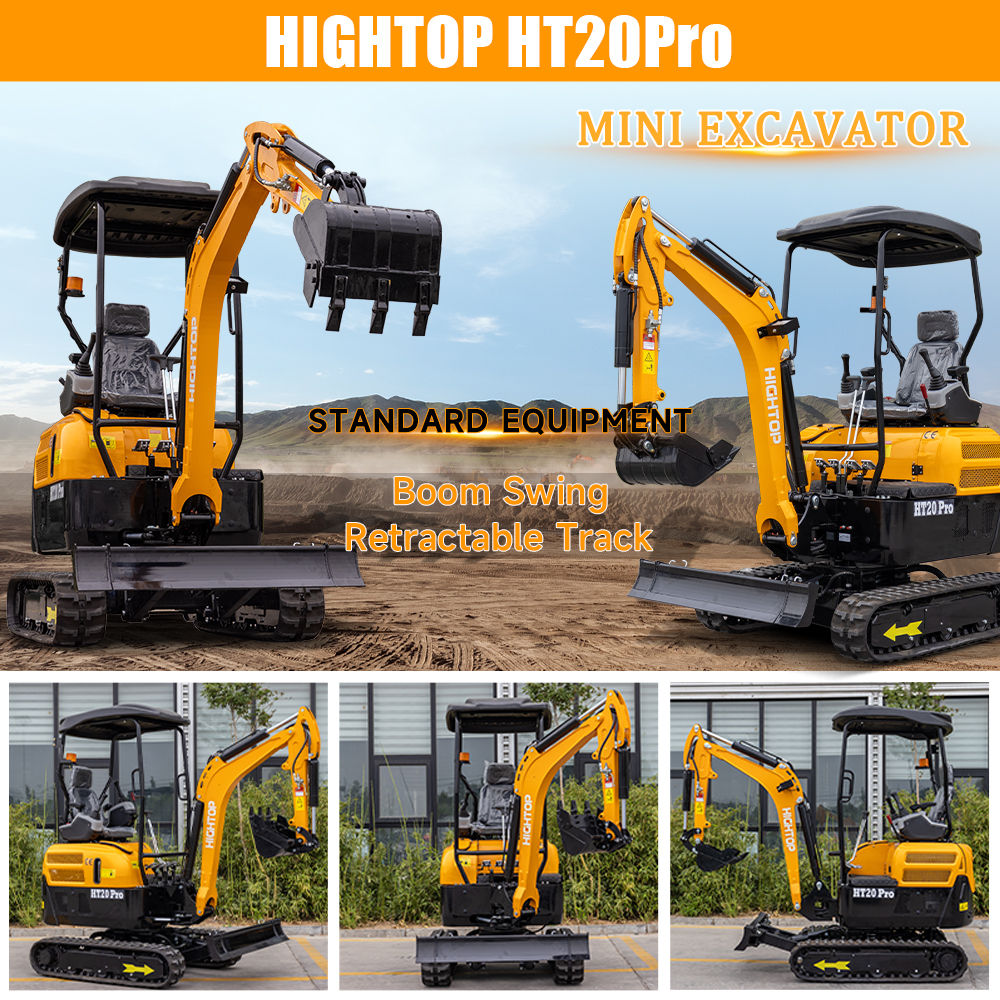

Maximize your job site efficiency with this premium 2 ton mini excavator with swing boom. It allows you to adjust the bucket left or right without moving the undercarriage, significantly increasing flexibility in tight spaces and edge-digging scenarios.
Equipped with a heavy-duty 8-way control valve, 2 zinc-plated actuators, and 4 cast aluminum foot pedals. This advanced hydraulic control system offers smooth composite movements and effortless travel control for professional operators.
Powering the HT20 Pro is the choice of a world-class Kubota or a heavy-duty Laidong diesel engine that complies with strict global emission standards. Delivering relentless torque and exceptional fuel economy, it firmly positions this machine as the best 2t small crawler excavator for trenching and landscaping.
Engineered with an upgraded, heavy-duty enlarged inverted arm, this machine delivers a much larger lateral digging range and superior breakout force. It stands out as a robust, heavy duty small excavator for construction and deep digging.
Adapt instantly to any environment with this compact excavator with high and low speed. Switch to low speed for high torque and delicate maneuvers on rough terrain, or shift to high speed to optimize long-distance travel efficiency across the site.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | HT20Pro | Standard track plate width | 200mm |
| Transportation length | 2650mm | Track gauge | 770~1070mm |
| Total width | 970~1270mm | Bulldozer height ground clearance | 290mm |
| Upper width | 1055mm | Bulldozer digging depth | 285mm |
| Overall height (cab roof) | 2350mm | Tail turning radius | 980mm |
| Track ground length | 1200mm | Track length | 1520mm |
| Engine | kubota/Laidong | Maximum digging height | 2875mm |
| Maximum unloading height | 1930mm | Maximum digging depth | 1995mm |
| Maximum digging distance | 3130mm | Minimum turning radius | 1670mm |
| Maximum height at minimum turning radius | 2285mm | Operating Weight | 1470kg |
| Bucket capacity | 0.025m3 | Working device form | backhoe |
| Climbing capacity | 30° | Main Valve | Tengfei |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
