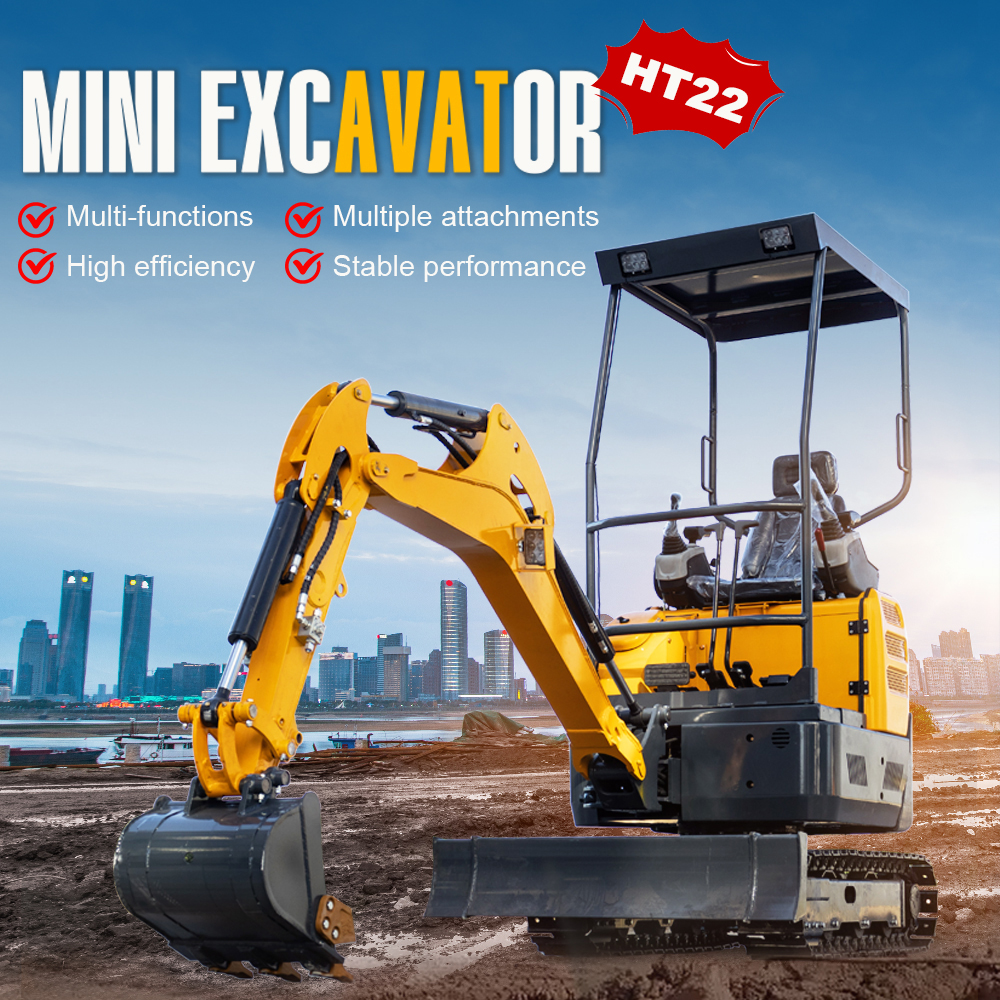

Engine Brand:Kubota D1105 Three cylinder direct injection
Rated Power:14KW,Operating Weight: 2200kg

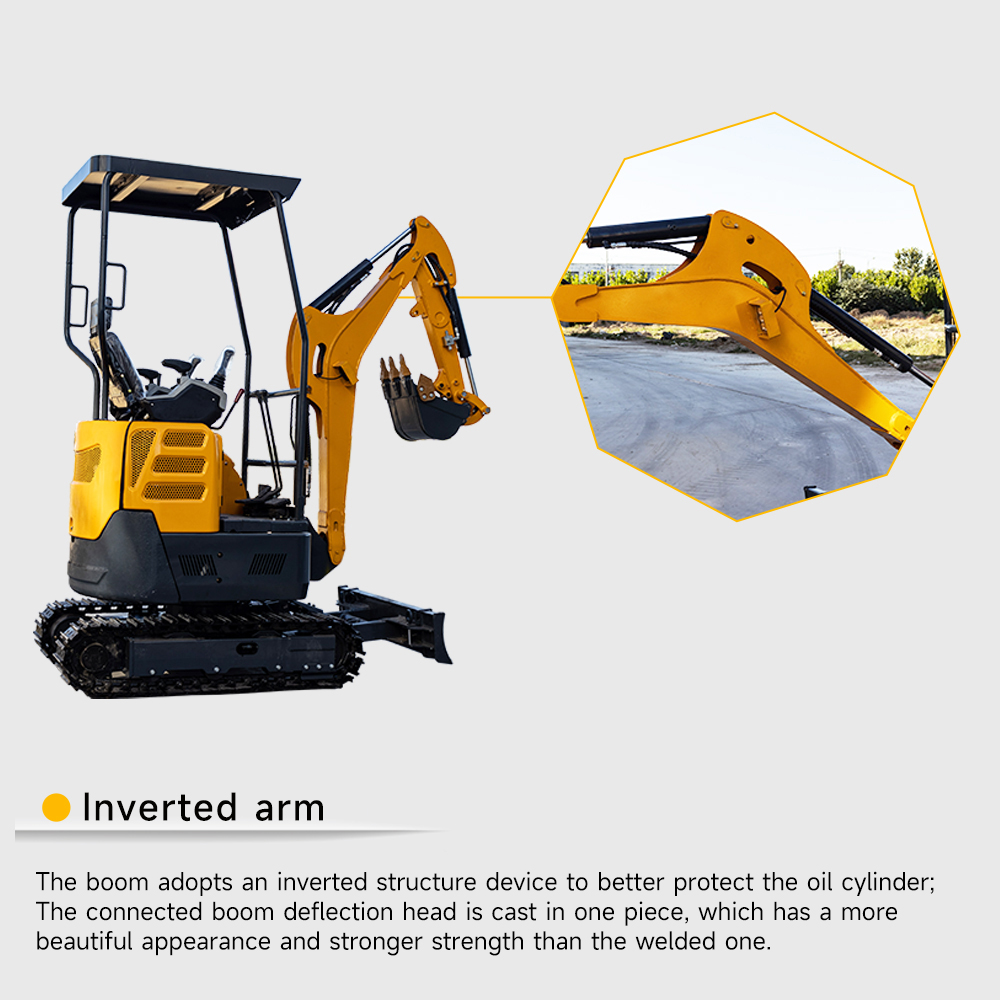

Hightop HT22 2.2ton mini excavator selected KOOP D1105 engine, three cylinder direct injection,power up to 14.2KW,traveling speed 2.2/4.3km/h,inverted boom,strong work and fuel saving, uniform heat distribution,Stable performance, a multi-purpose machine.Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Full hydraulic pilot operation includes: pilot handles on both sides, bulldozers, walking operations, breaking hammers, and boom swing functions. When working, after the engine is started, the safety lock must be pulled down before the entire vehicle can take action, which can also effectively protect the driver as an effective safety protection function.
This 2.2ton mini excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,auger,tilt bucket,ripper,rake,rotary grapple,tree shears and lawn mower.
Let you only need to buy an excavator to do all kinds of work.
Steel tracks –The lifespan of steel tracks is longer than that of rubber tracks, and they can also be interchanged with rubber tracks.
Moisture and rust prevention,Strong and durable,wear-resistant
Make the arm boom be swung right and left.better for the excavator to pass through narrow passages.
The motor is a high and low speed plunger motor with a hidden structure,High-back seat, improved control system.

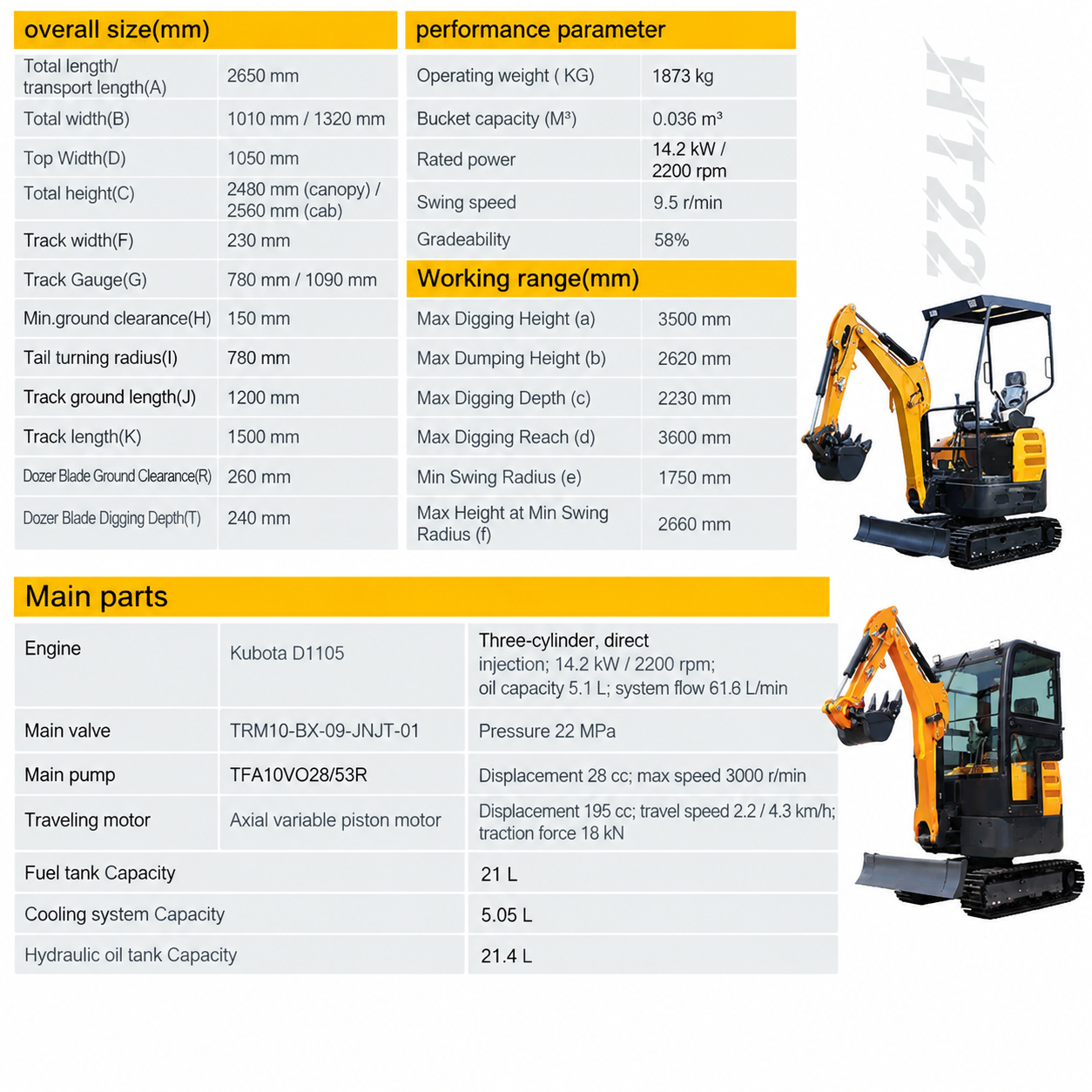

| Category | Parameter | Model | Value |
|---|---|---|---|
| Overall Dimensions | Total Length / Transport Length A | — | 2650 mm |
| Overall Dimensions | Overall Width B | — | 1010 mm / 1320 mm |
| Overall Dimensions | Upper Width D | — | 1050 mm |
| Overall Dimensions | Overall Height C (Canopy / Cab Top) | — | 2480 mm (canopy) / 2560 mm (cab) |
| Overall Dimensions | Standard Track Shoe Width F | — | 230 mm |
| Overall Dimensions | Track Gauge G | — | 780 mm / 1090 mm |
| Overall Dimensions | Minimum Ground Clearance H | — | 150 mm |
| Overall Dimensions | Rear Tail Swing Radius I | — | 780 mm |
| Overall Dimensions | Track Length on Ground J | — | 1200 mm |
| Overall Dimensions | Overall Track Length K | — | 1500 mm |
| Overall Dimensions | Dozer Blade Ground Clearance R | — | 260 mm |
| Overall Dimensions | Dozer Blade Digging Depth T | — | 240 mm |
| Performance | Operating Weight | — | 1873 kg |
| Performance | Bucket Capacity | — | 0.036 m³ |
| Performance | Rated Power | — | 14.2 kW / 2200 rpm |
| Performance | Swing Speed | — | 9.5 r/min |
| Performance | Gradeability | — | 58% |
| Working Range | Max Digging Height a | — | 3500 mm |
| Working Range | Max Dumping Height b | — | 2620 mm |
| Working Range | Max Digging Depth c | — | 2230 mm |
| Working Range | Max Digging Reach d | — | 3600 mm |
| Working Range | Min Swing Radius e | — | 1750 mm |
| Working Range | Max Height at Min Swing Radius f | — | 2660 mm |
| Main Components | Engine | Kubota D1105 | Three-cylinder, direct injection; 14.2 kW / 2200 rpm; oil capacity 5.1 L; system flow 61.6 L/min |
| Main Components | Flow-Sharing Main Valve | TRM10-BX-09-JNJT-01 | Pressure 22 MPa |
| Main Components | Swashplate Axial Piston Variable Pump | TFA10VO28/53R | Displacement 28 cc; max speed 3000 r/min |
| Main Components | Travel Motor | Axial variable piston motor | Displacement 195 cc; travel speed 2.2 / 4.3 km/h; traction force 18 kN |
| Main Components | Fuel Tank | — | Capacity 21 L |
| Main Components | Cooling System | — | Capacity 5.05 L |
| Main Components | Hydraulic Oil Tank | — | Capacity 21.4 L |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
