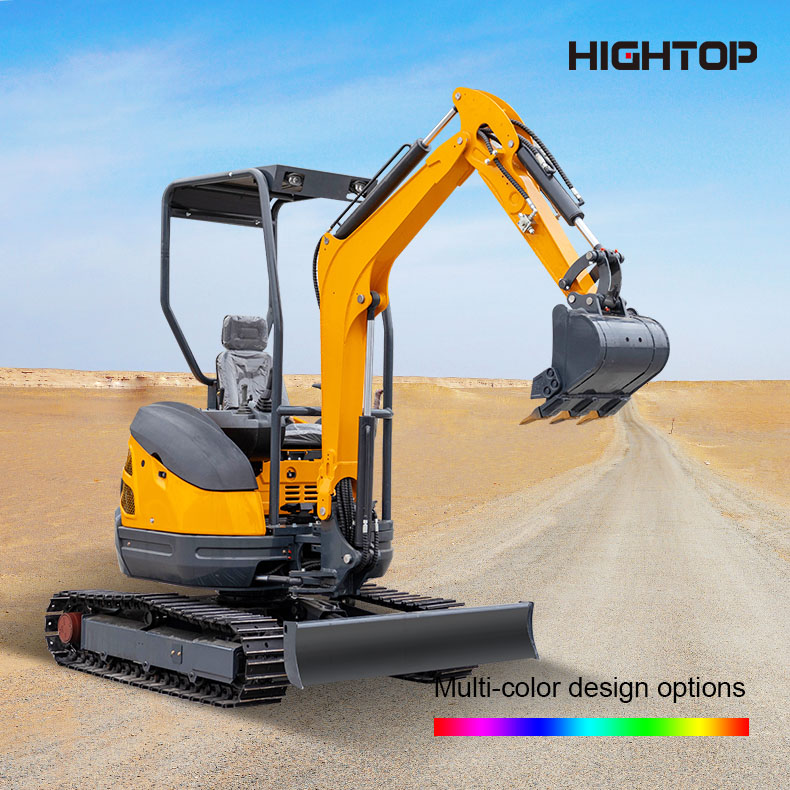

Engine Brand: Kubota or Koop
Rated Power: 14.2kw
Operating Weight: 2500kg
Outer cover design sheet metal stamping mould one-piece forming, steel track walking track, choose Japanese brand Kubota 1105 engine, strong power. power up to 14.2KW, strong work and fuel saving, uniform heat distribution.Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Fully hydraulic pilot operation includes: pilot handles on both sides, push shovel, travelling operation, breaker hammer and side swing function.
Optional key power-off function, turn off the vehicle key off the engine, the power supply will automatically power-off function, to avoid battery power consumption leads to the next start when the engine can not start.
This 1ton mini excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,auger,tilt bucket,ripper,rake,rotary grapple,tree shears and lawn mower.
Let you only need to buy an excavator to do all kinds of work.
Standard hydraulic three-way shut-off valve, both oil lines can be switched back and forth with a spanner to control the oil line when the pipe is not removed.
Getting off the oil pipe adopts hidden structure, effectively preventing the hydraulic oil pipe from being exposed to the sun outside for a long time, protecting the pipe from other dry wear and prolonging the service life when working in the harsh geological environment.
| Overall Dimensions (mm) | |
|---|---|
| Overall Length / Transport Length A | 2900 mm |
| Overall Width B | 1400 mm |
| Upper Width D | 1310 mm |
| Overall Height (Cab Top) C | 2480 mm |
| Standard Track Shoe Width F | 250 mm |
| Track Gauge G | 1150 mm |
| Minimum Ground Clearance H | 145 mm |
| Rear Tail Swing Radius I | 709 mm |
| Track Length on Ground J | 1480 mm |
| Overall Track Length K | 1858 mm |
| Dozer Blade Ground Clearance R | 285 mm |
| Dozer Blade Digging Depth T | 250 mm |
| Performance Parameters | |
| Operating Weight | 2150 kg |
| Bucket Capacity | 0.036 m³ |
| Rated Power | 14 kW / 2200 rpm |
| Swing Speed | 9.5 r/min |
| Gradeability | 30° |
| Working Range (mm) | |
| Max Digging Height a | 3365 mm |
| Max Dumping Height b | 2610 mm |
| Max Digging Depth c | 2045 mm |
| Max Digging Reach d | 3430 mm |
| Min Swing Radius e | 1975 mm |
| Max Height at Min Swing Radius f | 2745 mm |
| Main Components | |
| Engine | Kubota D1105, three-cylinder, direct injection; rated power 14.2 kW / 2200 rpm (oil capacity 5.1 L); system flow 61.6 L/min |
| Flow-Sharing Main Valve | TRM10-BX-09-JNJT20-01, pressure 22 MPa |
| Swashplate Axial Piston Variable Pump | TFA10VO28/53R, displacement 28 ml; max speed 3000 r/min |
| Travel Motor | Axial variable piston motor, displacement 6 / 12.5 ml; travel speed 2.2 / 4.3 km/h |
| Fuel Tank | Capacity 30 L |
| Cooling System | Capacity 5.05 L |
| Hydraulic Oil Tank | Capacity 29 L |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
