Engine brand:Chang Chai ZN390B
Power:39HP/ 2600rpm
Vibration frequency:75HZ
HIGHTOP rollers are ideal for road construction, offering a range of models from 0.5 to 3.5 tonnes. They efficiently enhance material compactness and smoothness through vibratory or static pressure. Featuring an advanced control system, our rollers are easy to operate, with a robust structure designed for durability in harsh conditions. Equipped with low-emission engines and energy-saving technology, they reduce environmental impact and energy consumption. Perfect for compacting soil, asphalt, and gravel, HIGHTOP rollers improve road surface smoothness and load-bearing capacity.
We offer cost-effective solutions with lower production costs from our China-based factory. We have more than 10 warehouses around the world and offer exceptional support including a 1-year warranty and lifetime technical support.

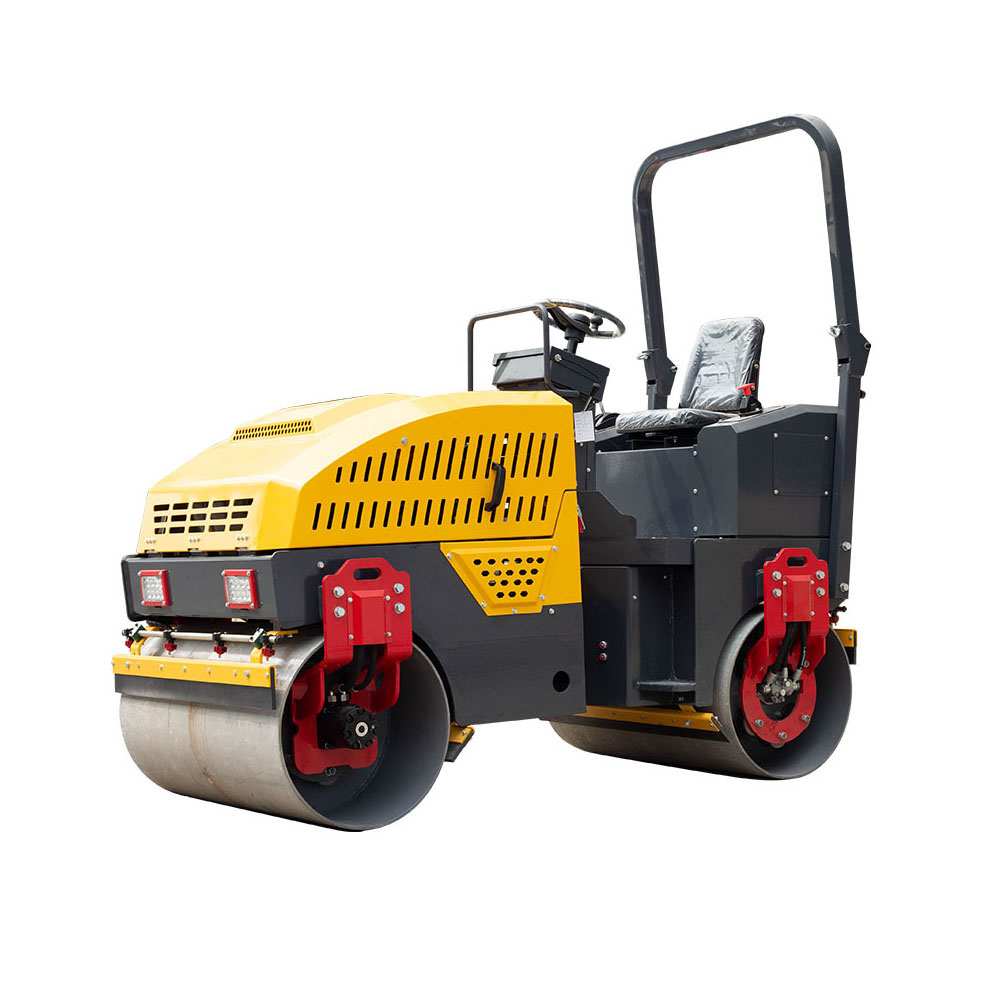

The 3ton full hydraulic roller is a double steel wheel roller equipped with a ZN390B diesel engine with a power of 39HP/2600rpm.Wide range of applications, superior performance, easy to operate and durable.
In some small municipal road maintenance projects, if you need to repair the asphalt pavement for fine compaction, HT-3000 double steel wheel compactor is a better choice.
Front and rear dual LED efficient lighting, more convenient night construction
LED lighting fitted to both the front and rear of the roller provides bright light, enabling the operator to see the work area clearly even in dark lighting conditions, thus improving work efficiency and reducing the likelihood of accidents.
Wheel width: 1200 mm, wheel diameter: 710 mm. The relatively large contact area of the large-sized wheels with the ground allows a wider road or working surface to be covered in a single pass. Reduces the number of roller passes when compacting large areas.
French brand pendulum hydraulic motor, increase the excitation force, can be used for earth compaction, can compact asphalt, backfill, gravel and other road surfaces. The motor comes with a center self-locking, superior performance
The front and rear frames of Hightop 2.5ton fully hydraulic roller are articulated, with large swing angle, which is not easy to roll over. Hydraulic power steering, light steering. When working on uneven road surface, the articulated connection helps the roller to keep stable.
Mdodel:HT-3000
Speed: 0-12km/h
Turning radius: 2300mm
Climbing ability: 30%
Static line load before/after: 125/87N/cm
Nominal amplitude: 0.5mm
Vibration frequency: 75Hz
Excitation force: 35kN
Driving form:Hydraulic two-wheel drive
Mode of vibration:Hydraulic vibration,Front wheel vibration/Two-wheel vibration
Steering form:Hydraulic steering
Sprinkler form:Electronically controlled pressure spray
Engine: Chang Chai ZN390B
Type: vertical three cylinder water cooling
Power: 39HP/2600rpm
Tank Capacity: 38L
Specific fuel consumption:240g/kw·h
Steel wheel width (front, rear):1200mm
Steel wheel diameter (front, rear):710mm
Overall length:2700mm
Overall width:1320mm
Total height (excluding anti-collision beam):1900mm
Export package size:2800*1350*2000mm
Working weight: 3140kg
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
