Engine Brand：Rato
Rated Power：9.7kw / 3600 rpm
Max.Dumping height：1405mm

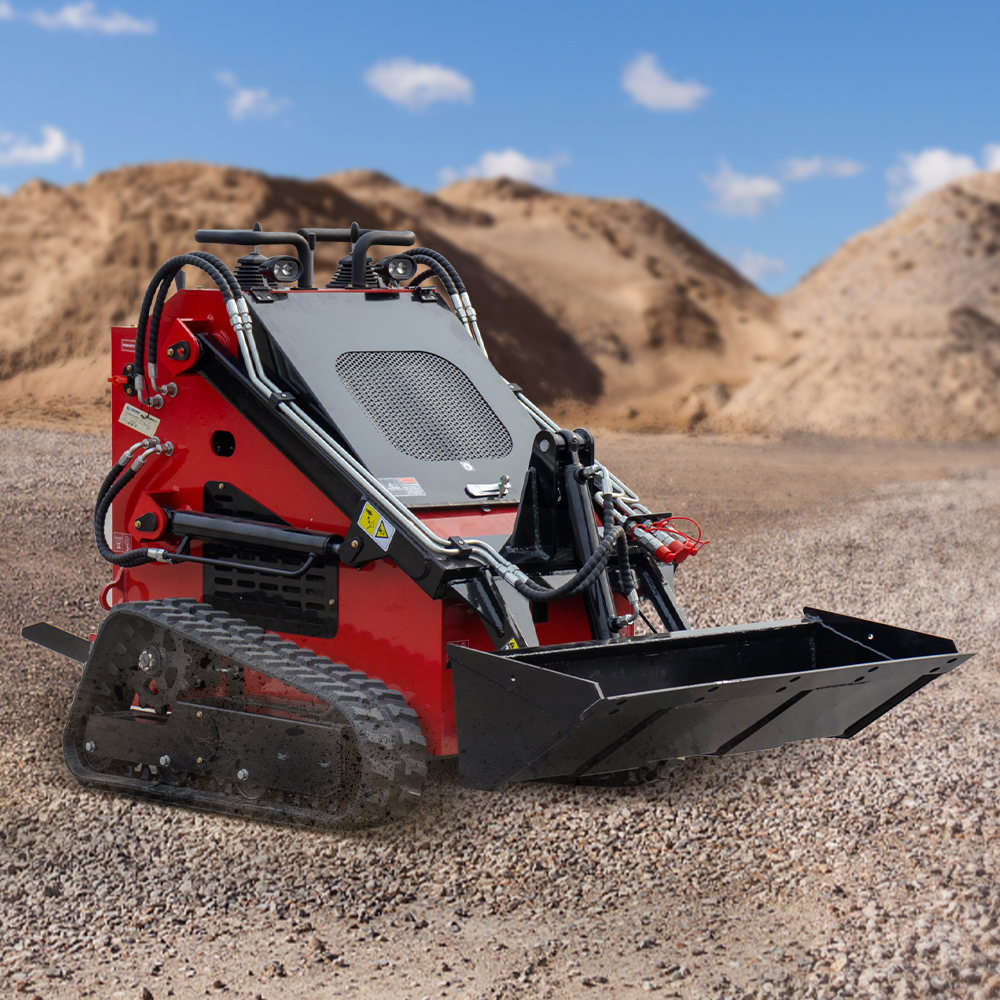

HIGHTOP skid steer loaders are ideal for professional landscapers and arborists, designed for tight spaces and lightweight tasks. Equipped with various attachments and a universal quick-connect mounting plate, these loaders handle job site tasks with ease. The series offers a working capacity from 500 lbs to 1,600 lbs (226.8 kg – 725.7 kg) and features top safety measures for operator protection.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery, our products include durable attachments compatible with most compact excavators and skid steer loaders. With over 10 global warehouses, we ensure fast shipping within one week and provide exceptional support, including a 1-year warranty and lifetime technical assistance.
This skid steer loader is powered by a premium RATO engine with up to 9.7KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height. For simple and accurate movement, this small skid steer is suitable for both inexperienced and seasoned landscapers.

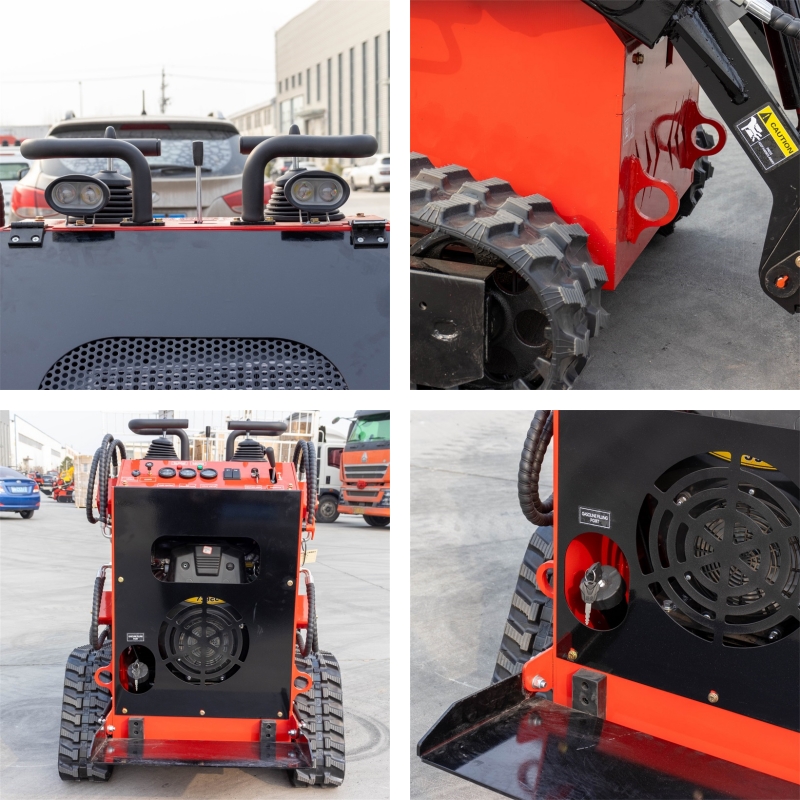

The front cover plate is easy to open, double-bar support, andthe maintenance and inspection inside the cabin is convenient.
Different work units can be quickly changed or connected on the construction site, often in just a few minutes, and can therefore be used for shovelling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening, trenching, crushing, mixing, snow ploughing and road sweeping.

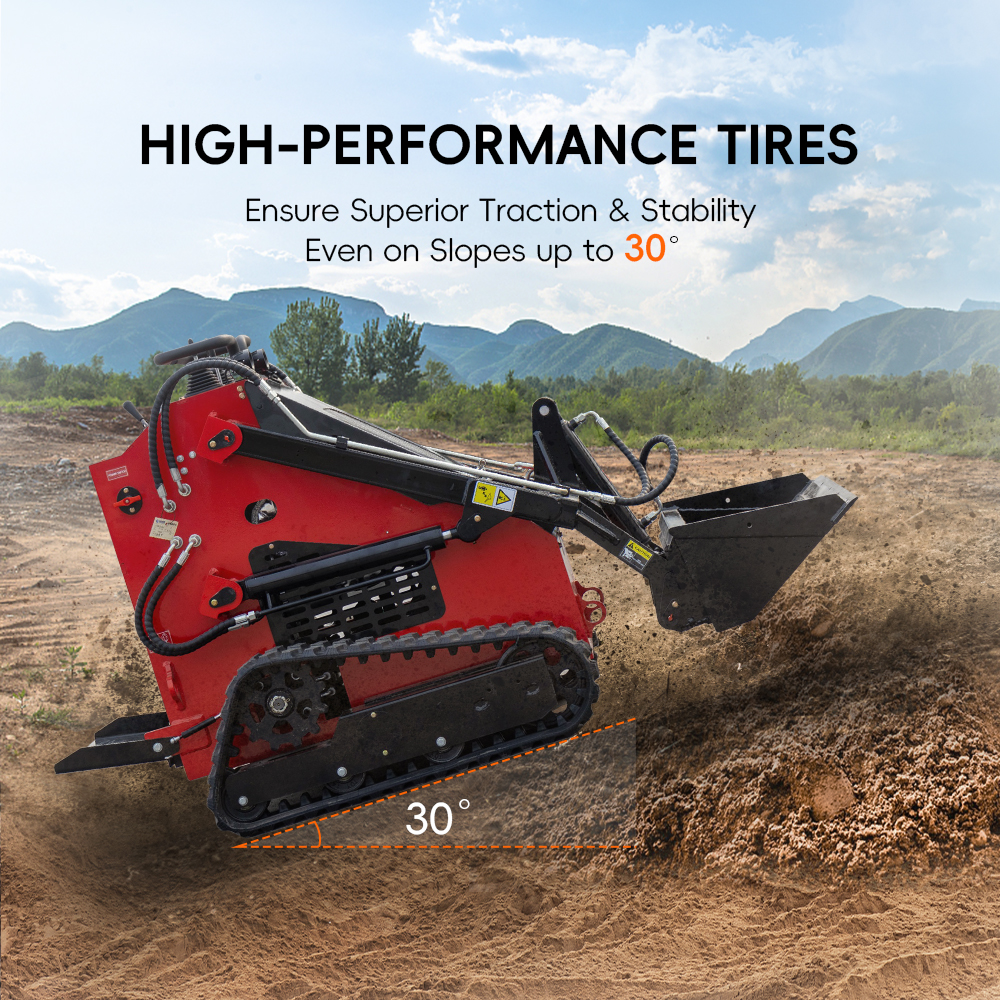

The lower vehicle adopts triangular track structure, which makeswalking more stable.The track design provides a larger contact surface and reduces stress on the ground, making it suitable for working on soft, muddy or uneven ground.
HIGHTOP skid steer is ability to operate the lifting arm, bucket, and attachments independently enhances flexibility, precision, and control.Max. working height up to 2120mm and keeps the bucket level to the ground.Lift arm, bucket and attachments are operated separately.
Max. working height:2120mm
Max. pin height:1865 mm
Max. Dumping height:1405 mm
Max. Dumping distance:575mm
Max. Dumping Angle:37°
Total height:1350 mm
Ground clearance:121 mm
Overall length without bucket:1495 mm
Total width:1021 mm
Bucket width:1080mm
Total length with bucket:2245 mm
Overall length without the bucket after folding the pedal:1990 mm
Engine :R420 or 13.5HP
Rated Power:9.7Kw/3600rpm,10Kw/3600rpm
Rotating speed :3600rpm
Noise ≤95Db
Hydraulic System
Pressure:0-17Mpa 0-17
Flow rate:0-18L ,0-21.6L
Operating Load:250 Kg
Bucket Capacity:0.15m³
Max. Lifting Force:360 Kg
Travel Speed:0-4.5Km/h
Operating Weight:830 Kg
Fuel tank 7L
Engine oil 1.7L
Hydraulic tank 37L
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
