1. High cost-effectiveness: As a directly operated factory located in China’s construction machinery production base, we are able to produce the skid steer loader at lower costs, including labor costs, raw materials, etc., and provide customers with cost-effective products.
2.One-stop purchasing: As a self-owned factory, we have a rich product line, covering compact construction machinery, and customers can purchase the required equipment from us in one stop.
3.Professional quality and performance: After years of production experience, our products have passed CE, SGS, TUV, ISO certification, providing professional-level quality and performance for small construction projects.
4.Durable and Versatile Attachments: We offer a range of attachments designed specifically for heavy-duty projects and are compatible with most skid steer loaders on the market.
5.Perfect after-sales service: Our professional sales and maintenance teams provide consultation and after-sales support, are committed to maximizing equipment performance, ensuring smooth project progress, and providing lifelong technical support.
This mini-excavator is powered by a premium RATO Engine R420D 15HP engine with up to 8.5KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Different work units can be quickly changed or connected on the construction site, often in just a few minutes, and can therefore be used for shovelling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening, trenching, crushing, mixing, snow ploughing and road sweeping.
Mechanical joystick control.Allows You to Nimbly Navigate. YourSurroundingsWhile Reducing Hand Fatigue.
Energy conservation and emission reduction.Thick hydraulic tubing, strong sealing, no oil leakage and oil leakage, stable and stable lifting operation.
Highly maneuverable, small and versatile machine, it is the rightchoicefor your doing job in confined space.

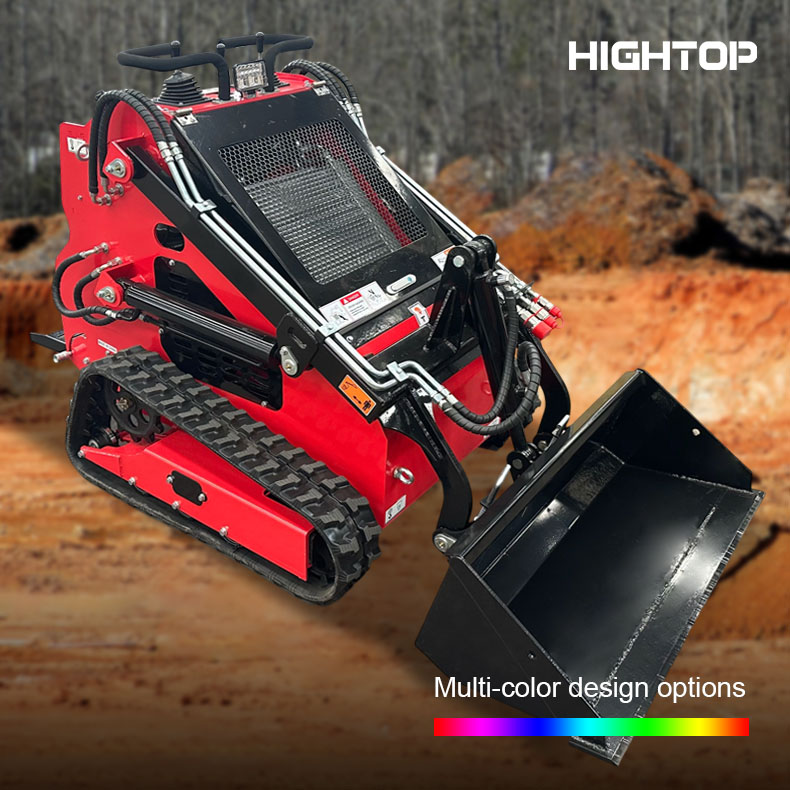

Model HT360W
Rated loading capacity 220kg
Bucket volume 0.09m³
Maximum lifting force 375kg
Working speed 0-6.5 km/h
Rated pressure 17Mpa
Lifting time 4.5s
Lowering time 3.5s
Tipping time 1.5s
Working weight 720kg
Engine Model RATO Engine R420D
Type of engine Gasoline Single cylinder
Output power 8.5KW(15hp)/3600rpm
Fuel consumption ≤4.1L/h
Starting method electric start
Fuel tank 6.7L
Engine oil 1.1L
Hydraulic oil tank 25L
Overall Dimension(L×W×H) 2400×1030×1330mm
Packing size (wooden box)(L×W×H) 1700×1050×1350mm
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
