HT500-2 Mini Dumper

Engine brand:Briggs&Stratton

Power:4.2KW/3600rpm

Load capacity:500kg

Request a quote

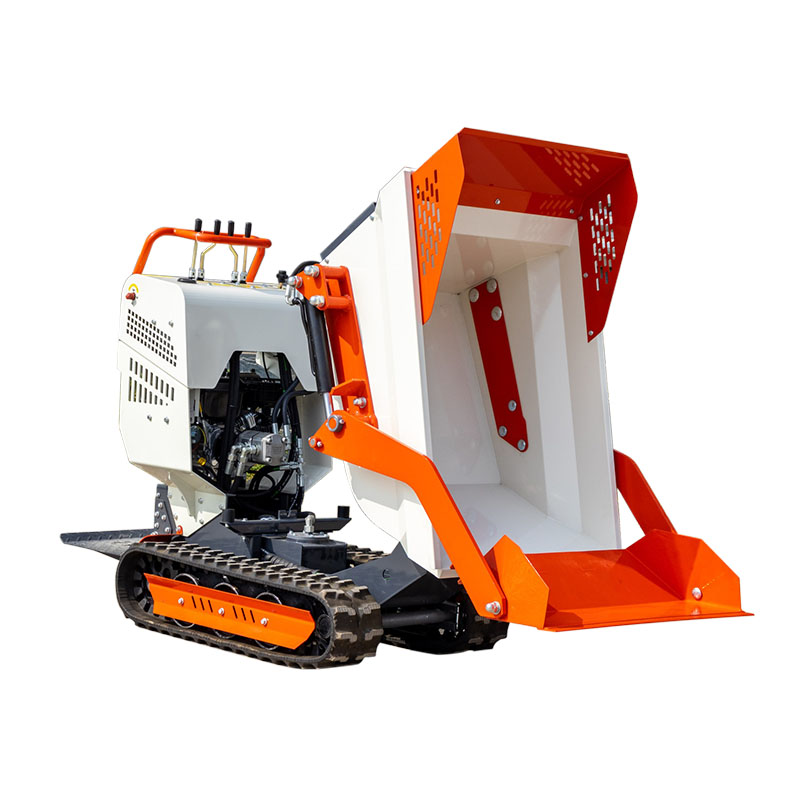

HT500-2 Mini Dumper - Image 1
HT500-2 Mini Dumper - Image 2
HT500-2 Mini Dumper - Image 3
HT500-2 Mini Dumper - Image 4
HT500-2 Mini Dumper - Image 5
HT500-2 Mini Dumper - Image 6
HT500-2 Mini Dumper - Image 7
HT500-2 Mini Dumper - Thumbnail Image 1
HT500-2 Mini Dumper - Thumbnail Image 2
HT500-2 Mini Dumper - Thumbnail Image 3
HT500-2 Mini Dumper - Thumbnail Image 4
HT500-2 Mini Dumper - Thumbnail Image 5
HT500-2 Mini Dumper - Thumbnail Image 6
HT500-2 Mini Dumper - Thumbnail Image 7
Overview
Features & Benefits
Parameters

Overview

HIGHTOP mini crawler dumpers are perfect for construction, renovations, and landscaping on challenging terrains. With load capacities from 500 kg to 2,900 kg, they deliver exceptional strength and versatility. Their compact design and advanced technology ensure high performance and safety, even in conditions where wheeled machines may struggle.

We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery。 We have more than 10 warehouses around the world and offer exceptional support, including a 1-year warranty and lifetime technical assistance.

Features & Benefits

502翻斗车 26

Brand Efficient Engine

Hightop Mini Crawler Dumper is powered by a premium brand engine with up to 4.2KW/3600rpm of power for powerful yet fuel-efficient operation and superior heat distribution.

502翻斗车 21

Customized transition gear

Customized transition gear box for easy engin startup with low ambient temperature.

502翻斗车 22

Seperate hydraulic circuit

Seperate hydraulic circuit for equipment traction

502翻斗车 30

Easy to operate

Forward and reverse drive controls by handle

502翻斗车 43

Detachable hopper protection

Detachable hopper protection

502翻斗车 25

Foldable platform

Foldable platform for flexiable maneuver

Parameters

Model:HT500-2

Engine:Briggs&Stratton

Cooling mode:Air-cooled

Fuel :Gasoline

Emission: Euro 5/EPA

Loading capacity:500kg

Box length:816mm

Box width:680mm

Box depth:620mm

Box type Integrated/one-piece

Track width:180mm

Flow of pump:6L/min

Mini Dumper weight:413kg

Overall dimension(L*W*H):1056*700*1225mm

Start mode:Manual/Electric starter

Driving type:Hydraulic

Steering mode:Hydraulic

Unload mode:Hydraulic

500 1主图 11

QUESTIONS & ANSWERS

Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.

HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.

1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.

2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.

3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.

4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.

HIGHTOP offers several advantages for overseas agents and distributors, including:

Customization: We support customization of machine logos, colors, and configurations to align with your market needs.

Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.

Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.

HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.

The minimum order quantity for HIGHTOP is 1 set.

  1. Compact: Able to operate in tight spaces, such as indoors or backyards.
  2. Mobility: Usually equipped with rubber tracks or wheels, causing less damage to the ground.
  3. Ease of operation: Easier to operate compared to larger excavators, with shorter training time.
  4. Cost-effective: Typically cheaper than larger excavators, suitable for small projects.
  1. Landscaping: Digging flower beds, removing trees, leveling ground, etc.
  2. Construction: Foundation digging, trenching for masonry work.
  3. Pipeline installation: Trenching for laying pipes or cables.
  4. Road repair: Excavating asphalt or concrete during road repairs.
  5. Roofing: Assisting in roof demolition or skylight installation.
  1. Consider the work environment: Ensure the excavator fits the size and ground conditions of your worksite.
  2. Evaluate digging depth requirements: Choose a model that meets the project’s digging depth needs.
  3. Consider attachments: Besides standard buckets, consider if you need other attachments like hammers or grapples.
  4. Understand operating weight and power: This affects the machine’s handling and digging capabilities.
  5. Consider brand and after-sales service: Choose reputable brands and ensure good after-sales support and service.
  1. Regular inspections: Check hydraulic oil, engine oil, coolant, and battery electrolyte levels regularly.
  2. Replace filters: Change air filters, hydraulic oil filters, etc., as per the manufacturer’s recommendations.
  3. Clean and lubricate: Keep parts clean and lubricate regularly.
  4. Check fasteners: Ensure all fasteners are secure.
  5. Avoid overloading: Do not overwork the excavator to prevent mechanical wear and failure.
  1. Operational costs: Fuel consumption, electricity costs (for electric models).
  2. Maintenance and repairs: Regular maintenance fees and part replacement costs.
  3. Insurance costs: Insurance for the excavator.
  4. Depreciation costs: The decrease in value over time.
  5. Licenses and certifications: Some areas may require special permits or certifications to operate.
  1. Size and capability: Large excavators have more digging power and depth, suitable for large construction projects. Mini excavators are suited for confined spaces and smaller-scale projects.
  2. Functionality: Large excavators often have more features and attachments for complex tasks.
  3. Cost: Large excavators are usually more expensive to buy or rent.

Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.

Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.

Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.

  1. Mini skid steer loader: Primarily used for loading, unloading, leveling ground, and due to its versatility, also used for pushing dirt, moving materials, and sweeping.
  2. Mini excavator: Mainly used for digging, suitable for trenching, foundation work, landscaping, and demolition. Mini excavators are capable of precise digging operations.
  1. Before each use, check all controls, seats, seatbelts, and lighting.
    • Check hydraulic oil, engine oil, coolant, and other fluid levels and conditions.
    • Inspect tires (or tracks) for wear and pressure (if applicable).
    • Clean off dust and dirt, especially from the radiator.
  2. Regularly lubricate all grease points with appropriate lubricants.
  3. After work, clean off dirt, weeds, and debris from the bucket and body to prevent corrosion.
  4. Regularly replace filters and hydraulic oil; check belts, batteries, brake systems, booms, and buckets.
