Engine Brand： Briggs & Stratton
Rated Power：6.5HP/3600rpm
Load Capacity：500 kg
HIGHTOP mini dumper are perfect for construction, renovations, and landscaping on challenging terrains. With load capacities from 500 kg to 2,900 kg, they deliver exceptional strength and versatility. Their compact design and advanced technology ensure high performance and safety, even in conditions where wheeled machines may struggle.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery。 We have more than 10 warehouses around the world and offer exceptional support, including a 1-year warranty and lifetime technical assistance.
With a Briggs & Stratton engine, our mini crawler dumper delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease. Enjoy smooth operation, minimal vibrations, and long-lasting durability.
With an unloading height of up to 970mm, this Hightop mini dumper helps you to load and unload materials from heights with ease.
HT500Y-4 lift dump truck is designed with multiple safety protection measures, such as non-slip tires, braking system, warning lights, etc., to ensure safe operation.
Revolutionize your workflow with our hydraulic tipping and retraction feature, easily controlled by a single button. Say goodbye to labor-intensive tipping and complex controls. Designed for contractors who value efficiency, this innovation simplifies tasks, enhancing precision and convenience for smarter project execution.
Maximize efficiency on the job with the crawler dumper, boasting a formidable 500kg load capacity, enabling you to transport hefty materials in fewer trips and significantly cut down on project time. This dumper is the ultimate tool for elevating your operational productivity to new levels.
Adapt to any environment with our mini dumper’s flexible dimensions. Its compact design allows it to maneuver easily in tight spaces and challenging terrains, making it perfect for diverse work sites. Whether working in confined areas or expansive projects, this adaptability ensures optimal performance and efficiency, enhancing your project’s versatility and ease of operation.

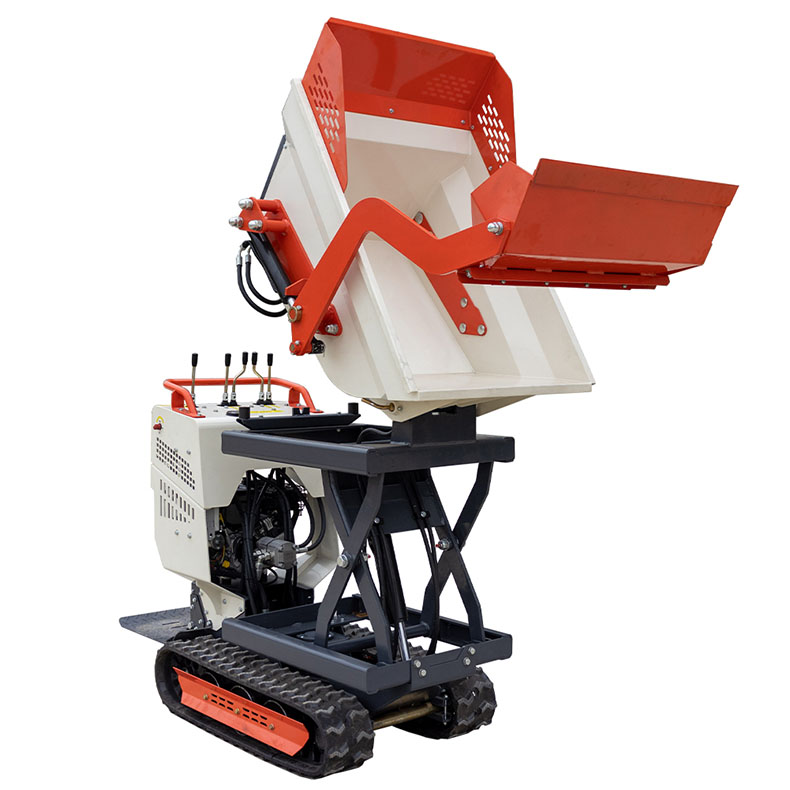

Model:HT500Y-4
Engine Model Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 203CC
Rated Power 6.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 3.6L
Total Weight 550kg
Maximum load 500kg
Machin size（Without pedal, without bucket） 1570*880*1450m
Bucket size with foot pedal: 2050*880*1450mm
Container size： 1050*730*730mm
Chassis width： 700mm
Maximum rise 1020mm
Tipping height 970mm
Tipping interval 220mm
Track data
track width： 180m
Track grounding length： 1000m
Chassis ground clearance: 110mm
Cargo box Capacity 200dm³
Tipping Systme Hydraulic Tipper
Tilting Angle 100°
Walking Speed 2.88km/h
Minimum Turning radius 1150mm
Track gauge 520mm
Climbing abillty 20°
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
