Engine ：Ducar,Horizontal bar, EPA， Four stroke, air-cooled
Rated Power：13.5HP/3600RPM
Maximum load capacity：800kg
HIGHTOP mini dumper are perfect for construction, renovations, and landscaping on challenging terrains. With load capacities from 500 kg to 2,900 kg, they deliver exceptional strength and versatility. Their compact design and advanced technology ensure high performance and safety, even in conditions where wheeled machines may struggle.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery。 We have more than 10 warehouses around the world and offer exceptional support, including a 1-year warranty and lifetime technical assistance.
Equipped with a 420CC single-cylinder, 4-stroke air-cooled Dajiang engine delivering 13.5HP/3600RPM rated power, the mixer meets EPA standards and runs on readily available 92# gasoline, ensuring stable performance for outdoor construction tasks.
Features a 90° hydraulic self-dumping system for quick and effortless unloading of mixed materials, eliminating manual handling and significantly improving construction efficiency on job sites.
Boasting a 380dm³ mixing drum capacity and 800KG maximum load capacity, this machine handles large batches of concrete or mortar efficiently, while the 750*900mm drum size ensures thorough mixing and uniform material consistency.
With a 26° climbing capability and 6km/h travel speed, the crawler-type design enables stable movement on uneven or sloped construction sites, and the 1250mm chassis width ensures excellent balance during operation and transportation.
The machine has a compact transport size of 2370*1250*1450mm (without footrest) and an integrated size of 2880*1250*1350mm (with footrest), making it easy to transport between job sites and suitable for small-scale construction projects with limited space.
The mixing hopper of the HT-800 small tracked vehicle can be quickly switched to the HT-1300 self dumping hopper. In construction, it can be transformed into a small mobile mixing plant, efficiently completing the mixing and transportation of concrete and mortar; It can also be switched to a dump truck to easily handle the loading, unloading, and dumping of materials such as sand, gravel, earthwork, and building materials.

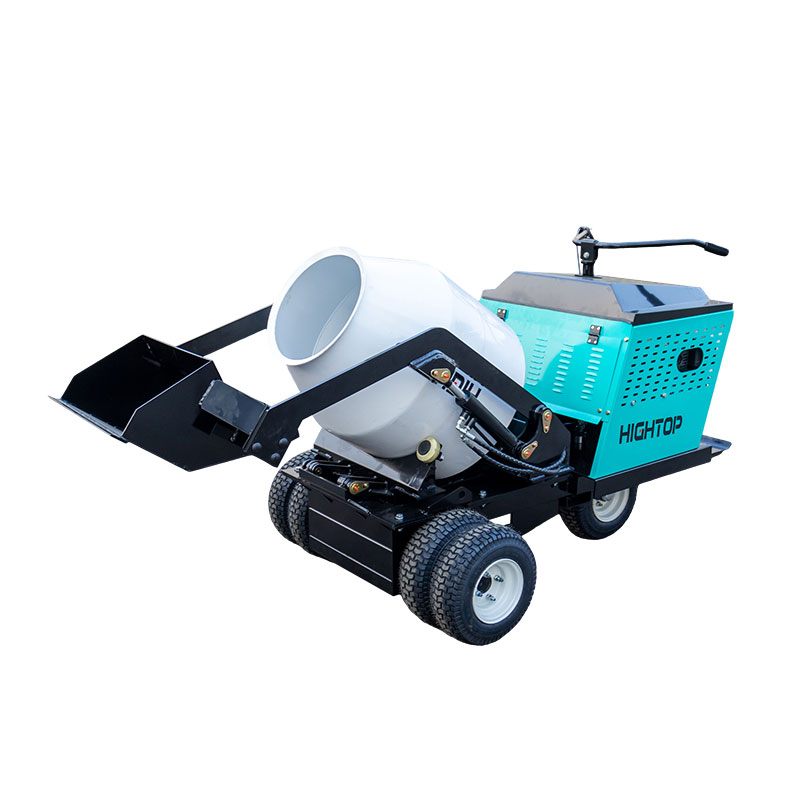

Mini Craweler Cement Mixer
Machine model:HT-800
Power model:Ducar Engine
Power type:Horizontal bar, EPA,Four stroke, air-cooled
Total displacement :420CC
Rated power :13.5HP/3600RPM
fuel type :92#
fuel tank :6L
Net weight:720
Maximum load capacity :800KG
Irrigation volume :380dm3
Transport size (excluding footrest) :2370*1250*1450mm
The overall size of the machine body, including the foot pedal:2880*1250*1350mm
Filling body size:750*900mm
Chassis width :1250mm
Tipping angle :90º
Tipping method:hydraulic dump
Walking distance:6KM/H
Climbing ability:26°
vulnerable parts
tire :6 pieces
hydraulic oil filter element:1 piece
air filter element:1 piece
throttle cable :1 piece
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
