HIGHTOP’s wheel loaders, featuring advanced engines and hydraulic systems, enhance efficiency and fuel economy. With working weights from 0.5 to 5 tonnes, they offer user-friendly cabs with air conditioning and shock-absorbing seats for optimal comfort. Versatile and adaptable, these loaders perform various tasks like digging, crushing, and sweeping with interchangeable attachments. Ideal for construction, earthwork, material handling, and more, HIGHTOP wheel loaders combine efficiency, flexibility, and versatility to become essential。
We offer cost-effective solutions with lower production costs from our China-based factory. With more than 10 warehouses around the world, we offer exceptional support including a 1-year warranty and lifetime technical support.
The HT910 wheel loader working environment in the cabin isexcellent, thanks to an efficiently workingheating and ventilation system with a fan,fresh air filter and well-placed air nozzles.
The arc top window make sure that the driverhas optimal view to the attachments, which issafe in working
The HT910 wheel loader is smaller and more powerful, not only for roads, railways, ports, mines, farms, ranches and other environments, but also for farming, gardening, aquaculture, construction or other applications
Grass fork, Snow sweeper, Auger, Snow blade, Snow bucket, Pallet fork, Screening bucket, 4 in 1 bucket and other attachments can be installed on the compact wheel loader to realize different functions.
Excellent corrosion protection of thepowder coating, greatly extended theservice life of the Hightop wheel loader.
The steering wheel is both safe and comfortable to hold in your hands, sturdy and responsive. As a result, you can control the machine and key functions at all times, with easy and convenient operation for increased productivity

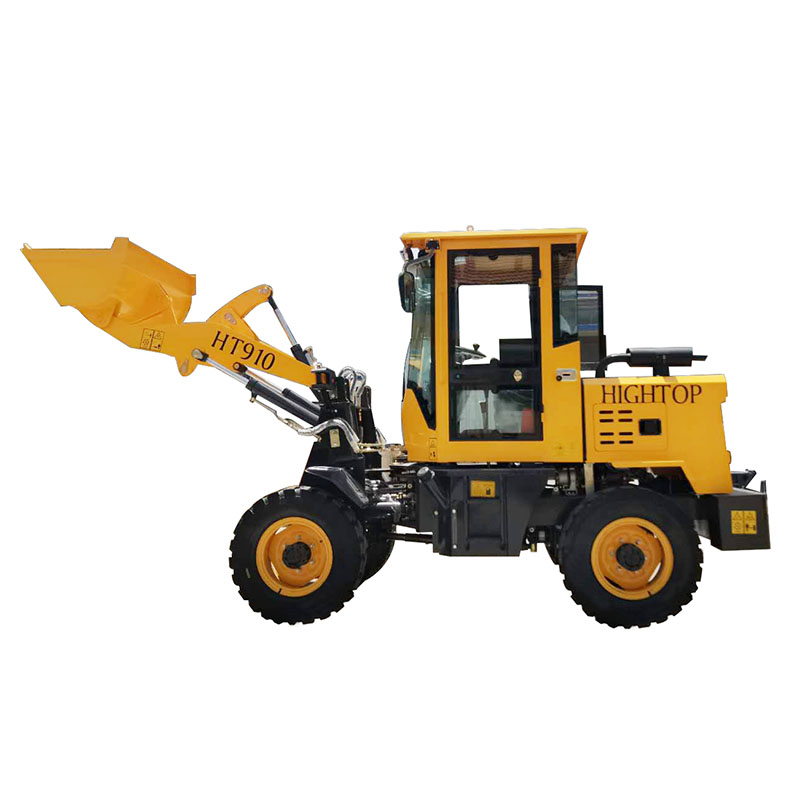

Model:HT910
Load and Unload Mode front discharge
Walking Mode Wheeled
Engine Changjia25
Tire 750-16
Standard Bucket Capacity 0.3m3
Bucket Width 1300MM
WHEEL TRACK 1370MM
Drive Bridge Type Half-axle axle
Engine Power 18KW
whole vehicle quality 1700KG
Wheel Base 1810MM
Control Type manual transmission
Trademark Walker
Overall dimension(LxWxH) 4400*1300*2330mm
Drive system mechanical gearbox
working hydraulic system mechanical single joystick
lifting time 4s
falling time 3.2s
Service brake Mechanical drum brake on gearbox
parking brake hand operated
Maximum unloading height 2400-2700MM
Rated load 500-800KG
Number of cylinders 1
Optional installation aids Bucket,grass gripper,fork
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
