Famous Brand Engine,Compact structure,Sensitive control .
Luffing arm,Hydraulic dual-speed system.
Wheel /crawler (optional)
Closed Cockpit (optional)
HIGHTOP skid steer loaders are ideal for professional landscapers and arborists, designed for tight spaces and lightweight tasks. Equipped with various attachments and a universal quick-connect mounting plate, these loaders handle job site tasks with ease. The series offers a working capacity from 500 lbs to 1,600 lbs (226.8 kg – 725.7 kg) and features top safety measures for operator protection.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery, our products include durable attachments compatible with most compact excavators and skid steer loaders. With over 10 global warehouses, we ensure fast shipping within one week and provide exceptional support, including a 1-year warranty and lifetime technical assistance.
Strong power, environmentally friendly, compliant with EPA Tier 4/Euro Stage V standards, equipped with independent intelligent radiation and maintenance free sprocket box.
Under the condition that the vehicle width is 1065mm(Standard Tire) , thecabin is 100mm wider, providing a more spacious and comfortable workingenvironment for the operator.
Self-innovative vertical elevating mechanism with strongpower and general fast-changing device.The adoption ofthe variable width working arm ensures that a higherload carrying capacity is realized with a smaller width.
HT-L25 adopts imported European and Americanhydraulic parts.Manipulation adopts pilot servo system,sensitive control, quick response, can work smoothly in narrowr soace
Anti-slip and wear-resistant.flexible turning, long servicelife.
crawler can be selected according to your needs
Different work units can be quickly changed or connected on the construction site, often in just a few minutes, and can therefore be used for shovelling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening, trenching, crushing, mixing, snow ploughing and road sweeping.

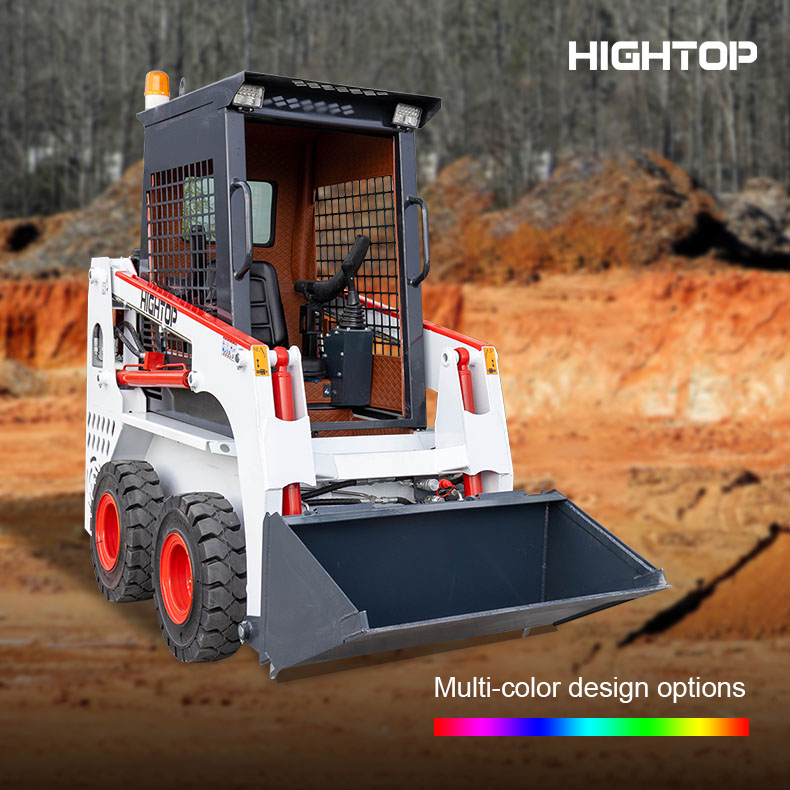

Model：HT-L25
Overall operating height:3050 mm
Height to bucket hinge pin:2580 mm
height to top of cab :1940 mm
Height to bottom of level bucket:2625 mm
Without bucket length:2060 mm
overall length with bucket:2570 mm
Dumping angle at maximum height:23。
Dumping height:2150 mm
Dumping reach:560 mm
Rollback o bucket on ground:33。
Rollback of bucket at full height:45。
Wheelbase:760 mm
Ground clearance:120 mm
Angle of departure:10。
Front turning radius without bucket:1025
Front tuning radius:1560 mm
Rear tuning radius:1140 mm
Rear axle to bumper:1120 mm
Tread width:920 mm
Width:1065 mm
Bucket width:1010 mm
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
