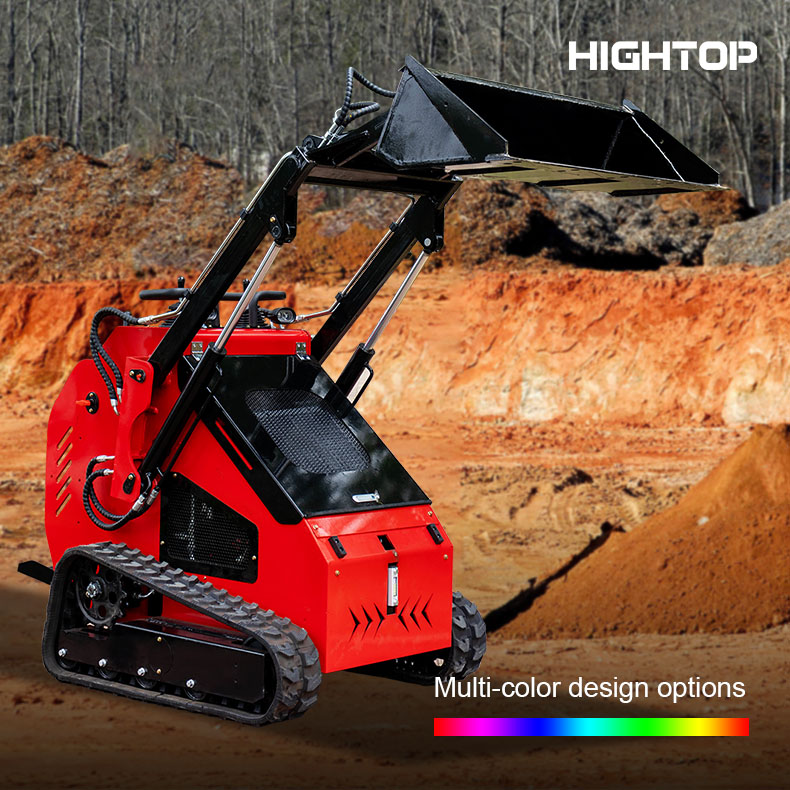

Engine Brand：Rato
Rated Power：19.2KW/26HP
Operating Weight：860kg
HIGHTOP skid steer loaders are ideal for professional landscapers and arborists, designed for tight spaces and lightweight tasks. Equipped with various attachments and a universal quick-connect mounting plate, these loaders handle job site tasks with ease. The series offers a working capacity from 500 lbs to 1,600 lbs (226.8 kg – 725.7 kg) and features top safety measures for operator protection.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery, our products include durable attachments compatible with most compact excavators and skid steer loaders. With over 10 global warehouses, we ensure fast shipping within one week and provide exceptional support, including a 1-year warranty and lifetime technical assistance.
This Hightop skid steer loader is powered by a premium RATO 26HP engine with up to 19.2KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Hydraulic double operating leverFlexible use of high safety factorThe numbers are clear to my eyes.Operation panel adopts stainless steel wire drawing and etching processing technology.Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height.
Its size is relatively smallCan squeeze through the entrance and fence doorYou can also work indoors，the working width is only 1025mm，Max Dumping height up to 1390 mm.Thick hydraulic tubing, strong sealing, no oil leakage and oil leakage, stable and stable lifting operation.
The front cover plate is easy to open and supported by double rods for easy maintenance and inspection inside the cabin.
Wear-resistant tires/tracks can be customizedFlexible steering, strong gripSuitable for a variety of terrain.Our skid steer loader’s tracks provide superior traction and stability.
Radiator,3 seconds,Cooling the machine quickly.
Reasonable air duct layout design,Compact structure, rapid heat dissipation
Main Size 382T
Maximum working height (A) 2200mm
Maximum pin height (B) 1884mm
Maximum discharge height (C) 1488mm
Maximum discharge distance (D) 348mm
Bucket swing Angle (β) 55°
Bucket discharge Angle (γ) 30°
Suction Angle (θ) 25°
Departure Angle (α) 11°
Total height (H) 1280mm
Ground height (F) 100mm
Wheelbase (G) 860mm
No bucket length (J) 1780mm
Total width (W) 1200mm
Bucket width (K) 1190mm
Total length (L)(with bucket) 2500mm
Front turning radius (R) 1307mm
Working hours
lift(S) 4.27
load(S) 1.34
landing(S) 3.31
Herringbone engineered tire 18*8.5-8
Carrying capacity 380Kg(62% tipping load)
Bucket volume 0.15 m3
Maximum lifting force 550KG
Maximum lift 380 Kg
speed 0-5.5 Km/h
Operating weight 860Kg
Tractive effort No load: 520KG
Angle of climb 17degree
Service time (full oil) 3-4h
Rated power (KW) 19.2KW(26HP) (Runtong brand)
Rated speed (rpm) 3600
Noise (Db) ≤95
Fuel tank volume(L) 28 L
Hydraulic tank volume(L) 20 L
System Pressure 17MPa=170bar=2465psi
Standard flow 25L/min
Traveling pump flow 22L/min
Replenishment pump flow 10L/min
Working system 44L/min
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
