Rated Power:36.8KW/2500rpm
Max. working speed:12km/h
Operation weight:3003kg
HIGHTOP skid steer loaders are ideal for professional landscapers and arborists, designed for tight spaces and lightweight tasks. Equipped with various attachments and a universal quick-connect mounting plate, these loaders handle job site tasks with ease. The series offers a working capacity from 500 lbs to 1,600 lbs (226.8 kg – 725.7 kg) and features top safety measures for operator protection.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery, our products include durable attachments compatible with most compact excavators and skid steer loaders. With over 10 global warehouses, we ensure fast shipping within one week and provide exceptional support, including a 1-year warranty and lifetime technical assistance.

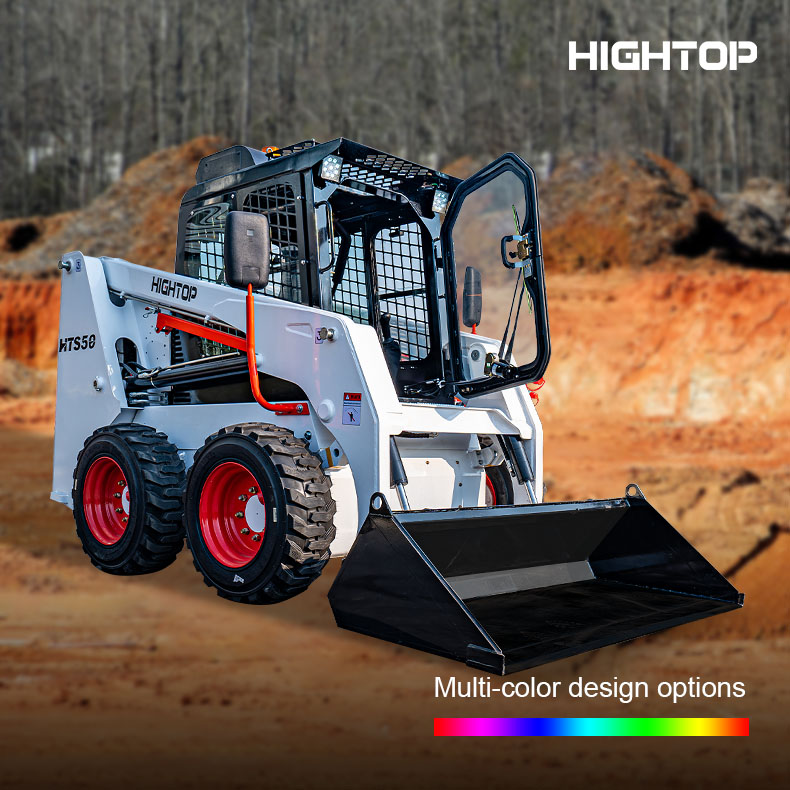

The HTS50 skid steer loader is equipped with a well-known brand high-power engine, with a power of 36.8KW and a speed of 2500rpm. Whether carrying heavy objects or working in rugged terrain, tasks can be completed stably and efficiently. During high load operation, the engine can also ensure continuous and stable operation of the equipment.
It is equipped with multiple functional configurations such as aquick-change device, a safety self -locking device, a boomsupport device, noise-reducing sponge, a front hydraulic auxil-iary device, a reversing alarm, and a horn.
A variety of auxiliary tools are available for selection, including construction buckets,enclosed sweepers, four -in-one buckets, four – point lifting lugs folsnowplows, qrab buckets, ditchers, manure scrapers, tree transplanters, rota-tors, milling machines, breaker hammers, forklift forks, etc.
The enclosed cab effectively isolates pollutants such as noise, dust, and harsh weather conditions, providing a more comfortable operating environment. It can also protect the operator in the event of a rollover or falling object. Internally equipped with fire-fighting equipment for safer use.
Semi enclosed cockpit is also optional
Imported hydraulic motors have stronger and more reliable driving force. Rotating structure with rear mounted radiator, convenient for machine maintenance and upkeep. Increasing the bucket increases the loading capacity. Heavy duty tires with high load-bearing capacity are wear-resistant and durable. The seat is comfortable and elastic. LED lights are convenient for nighttime construction.
10-16.5-12PR RG400 heavy – duty tires, as well as solid tireswith the specification of 30 *10-16(160/205)
Rotating warning lights, semi-enclosed cab (without heater/airconditioner, door or window components)
Machine colors and logos can be customized
Model No.:HTS50
Max.Operation height:4058mm
Height of the bucket hinge pin:3077mm
Height to Cabin top:2007mm
Max.horizontal height of the bucket bottom :2908mm
Length without bucket:2700mm
Length with bucket 3413mm
Max. unloading height:2303mm
Unloading distance:675mm
Wheelbase:999mm
Departure angle:23°
Ground clearance:185mm
Rear turning radius :1627mm
Machine width:1469mm
Width of the tire edge:1740mm
Width of the bucket edge:1780mm
Bucket capacity:0.35m³
Diesel fuel tank capacity: 88L
Hydraulic fuel tank capacity:70L
Rated working capacity:750kg
Overturning working capacity:1500kg
Operation weight:3003kg
Max. working speed:12km/h
Standard Engine:Xinchai490
Power:36.8KW/2500rpm
Operation Method :Mechanical/Hydraulic control
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
