Engine Brand：Kubota
Rated Power: 14KW
Operating Weight: 1330Kg

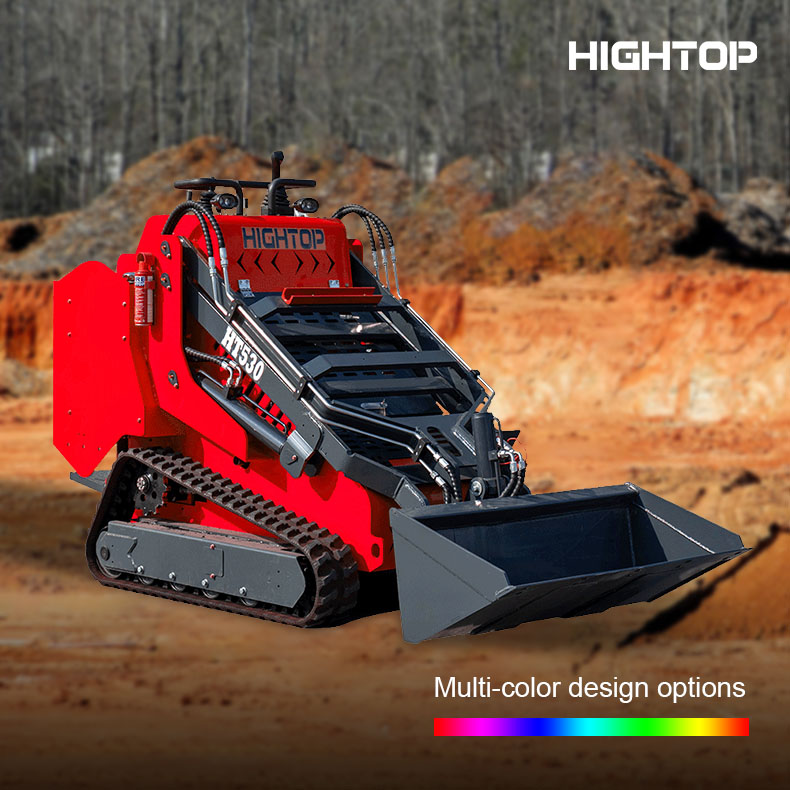

This Skid Steer Loader is powered by a premium KUBOTA D1105 engine with up to 14KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Longer service life: Compared to regular engines, this one has a far longer service life, guaranteeing longer performance.
Professionally guaranteed: Supported by a one-year warranty to ensure your investment is protected and you can feel at ease.
Different working devices can be quickly changed or hooked up at the work site, usually in just a few minutes, so that they can be used for shoveling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening, ditching, road sweeping and road compaction.
Use the handy joysticks to effortlessly adjust the speed, direction, and lifting height. For simple and accurate movement, this small skid steer is suitable for both inexperienced and seasoned landscapers.
Its size is relatively smallCan squeeze through the entrance and fence doorYou can also work indoors，Maximum working height up to 2630 mm
The front cover plate is easy to open and supported by double rods for easy maintenance and inspection inside the cabin.The cylinder support frame is used during testing, which has a higher safety factor.
Our skid steer loader’s tracks provide superior traction and stability. These tracks are backed by a gearbox attached to each drive motor, ensuring synchronized and powerful movement. This combination of tracks and gearbox drives is instrumental in conquering challenging slopes and terrains.
| Model | HTS530 |
| Max working height | 2630mm |
| Max pin height | 2090 mm |
| Max Dumping height | 1535 mm |
| Max Dumping distance | 715mm |
| Max Dumping Angle | 38° |
| Total height | 1630 mm |
| Ground clearance | 150 mm |
| Overall length without bucket | 2220 mm |
| Total width | 1050 mm |
| Bucket width | 1150mm |
| Total length with bucket | 2745 mm |
| overall length without the bucket after folding ｔhe pedal | 2100 mm |
| Engine | KUBOTA D1105 |
| Optional engine | |
| Rated Power | 14KW |
| Rotating speed | 2200rpm |
| Noise | ≤93Db |
| Pressure | 0-17Mpa |
| Flow rate | 0-32L |
| Operating Load | 450kg |
| Bucket Capacity | 0.2m3 |
| Max Lifting Force | 530 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 1330 Kg |
| Fuel tank | 30L |
| Engine oil | 4L |
| Hydraulic tank | 35L |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
