Engine brand:Honda
Power:5.5hp/3600rpm
Vibration frequency:75HZ
HIGHTOP road rollers are ideal for road construction, offering a range of models from 0.5 to 3.5 tonnes. They efficiently enhance material compactness and smoothness through vibratory or static pressure. Featuring an advanced control system, our rollers are easy to operate, with a robust structure designed for durability in harsh conditions. Equipped with low-emission engines and energy-saving technology, they reduce environmental impact and energy consumption. Perfect for compacting soil, asphalt, and gravel, HIGHTOP rollers improve road surface smoothness and load-bearing capacity.
We offer cost-effective solutions with lower production costs from our China-based factory. We have more than 10 warehouses around the world and offer exceptional support including a 1-year warranty and lifetime technical support.
Divided into forward and backward two gears
Long time use is not easy to deformation, anti-corrosion and wear-resistant
Effectively prevent clay from sticking to steel wheel
Turbine sprinkler Work with the scraper
Two-way hydraulic walking, small working radius, simple operation, flexible rotation.
Easy to operate and adjust
| Parameter | Value |
|---|---|

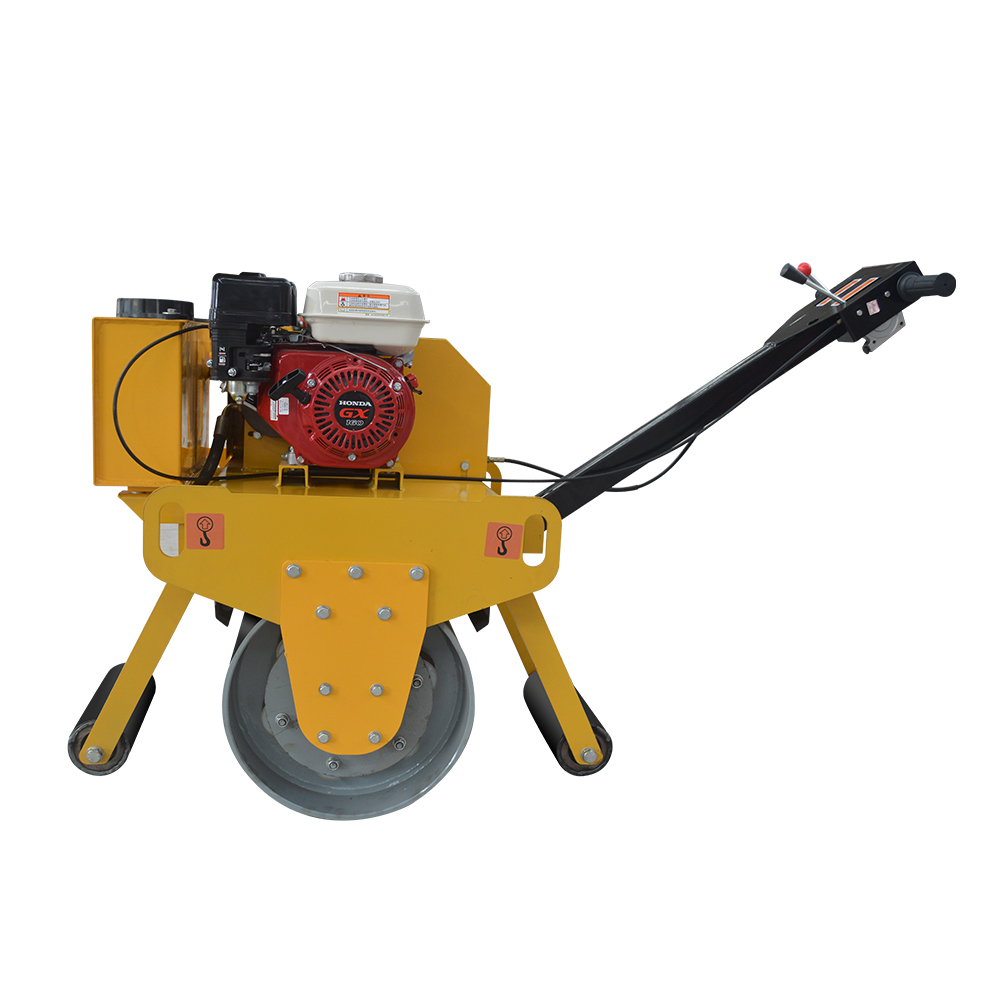

| Model | HT-YL600A |
| Travel Speed | 0-4 km/h |
| Gradeability | 25% |
| Nominal Amplitude | 0.5 mm |
| Vibration Frequency | 75 Hz |
| Excitation Force | 20 kN |
| Water Tank Volume | 20 L |
| Actuation System | Hydraulic Pump and Motor |
| Vibration System | Automatic Vibration – Centrifugal Clutch |
| Engine Model | Honda GX160 |
| Engine Type | Gasoline Engine, Air-cooled 4-Stroke |
| Rated Power | 5.5 HP / 3600 rpm |
| Fuel Tank Capacity | 3.5 L |
| Specific Fuel Consumption | 395 g·kWh |
| Steel Wheel Width | 600 mm |
| Steel Wheel Diameter | 426 mm |
| Total Length (Armrest Flat) | 1650 mm |
| Overall Width | 760 mm |
| Total Height (Armrest Standing Up) | 1300 mm |
| Export Package Size | 1150 × 850 × 1200 mm |
| Working Weight | 320 kg |
Here you can find answers to the most frequently asked questions regarding our products, repair service and warranty. If you do not find the answer you are looking for on the following page, please do not hesitate to contact us.
HIGHTOP offers a one-year warranty and complimentary technical support. Our services include online guidance and repair videos, with additional support tailored to specific situations. If a problem arises due to a defect in the machine, we will provide replacement parts free of charge. However, if the issue is due to improper use by the customer, they will be responsible for the associated costs.
1）Energy Saving: The vector synchronous controller precisely regulates the motor speed, reducing energy consumption during operation and achieving significant energy savings.
2）Environmental Protection: Our excavators use ternary lithium batteries as their power source, replacing gasoline and diesel fuels. This reduces emissions and ensures the machine operates in an environmentally friendly and reliable manner.
3）High Efficiency: The combination of a three-phase AC permanent magnet synchronous motor and a gear pump provides hydraulic power to the entire system. The optimized motor speed and gear pump flow design ensure that the machine operates reliably and efficiently.
4）Long Life: The rotating parts are constructed from highly wear-resistant materials and feature an enhanced lubrication system to minimize friction and extend the machine’s service life.
HIGHTOP offers several advantages for overseas agents and distributors, including:
Customization: We support customization of machine logos, colors, and configurations to align with your market needs.
Marketing Support: We provide tailored marketing support based on your company’s capabilities and order volume.
Delivery times for HIGHTOP machines, including excavators, skid loaders, dump trucks, and rollers, range from 5 to 30 days, depending on the quantity of the order. For special customized models, the delivery time may be extended.
HIGHTOP supports a variety of payment methods, including L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), T/T (Telegraphic Transfer), Western Union, MoneyGram, and more.
The minimum order quantity for HIGHTOP is 1 set.
Yes, mini excavators typically have lower noise levels and emissions, making them suitable for residential areas or places with strict noise and environmental regulations.
Yes, due to their compact design and smaller size, mini excavators are ideal for indoor work, such as home renovations or repairs.
Yes, with a specialized breaker attachment, mini excavators can effectively break concrete and other hard materials.
